Magnetic Drill with Automatic Feed for Production Applications

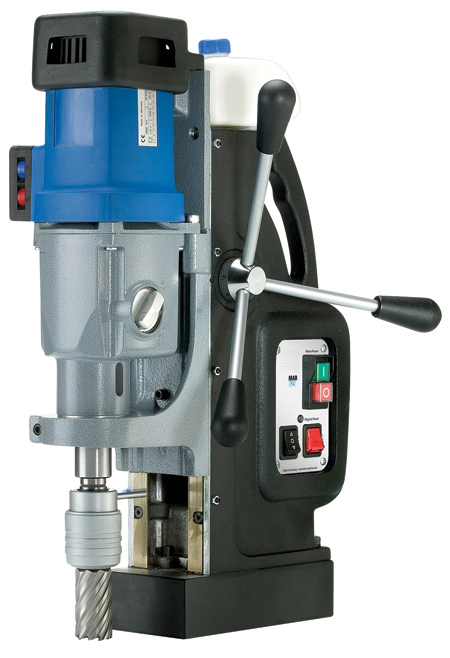

CS Unitec's MAB 825 V portable magnetic drill features an automatic feed mechanism with power retraction, making it suitable for production applications.

The 16 amp, double-insulated reversible motor has a four-speed oil bath gearbox (40-110, 65-175, 140-360, 220-600 RPM) for applications requiring high power. With infinitely variable torque control and full-wave electronics, this heavy-duty drill cuts holes up to 4" dia. in structural steel and other metals. Additional capabilities include twist drilling and reaming up to 1-1/4" dia., tapping up to 1-1/8" dia. and countersinking up to 2". A stroke length of 10" makes the MAB 825 V useful for steel engineering, plant construction and more. This unit has a quick-change keyless cutter system for 3/4" Weldon shanks.

Integrated sensors in the MAB 825 V include magnet overheating protection, visual magnet adhesion indication and an electronic safety shutoff sensor to automatically shut down the drill motor if the magnet loses contact with the material. An internal cable routing system helps protect the motor power cord from external damage. The magnet has a holding force of 6,600 lbs.

For more information contact:

CS Unitec, Inc.

22 Harbor Avenue

Norwalk, CT 06850

888-886-7712 / 203-853-9522

info@csunitec.com

www.csunitec.com
