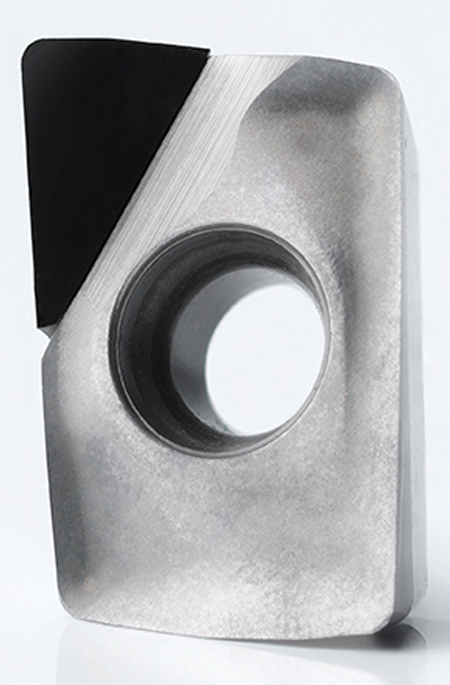

Milling Inserts for Smooth Finishing



Seco has introduced two PCD-tipped milling insert grades - PCD05 and PCD20 - for use with its Turbo 10 cutters. Engineered for aerospace and automotive part production, these grades can produce enhanced surface quality in finish machining applications involving aluminum and titanium alloy workpiece materials. These PCD grades are also effective in cutting polymers and fiber-reinforced composites.

PCD05 and PCD20 milling insert grades work alone or alongside carbide inserts in the same Turbo 10 cutter body. When used with carbide inserts, the PCD insert grades serve as wiper inserts in fixed pockets. Conversely, running the PCD05 and PCD20 in one Turbo 10 cutter body optimizes their potential and helps ensure maximum cutting parameters.

Featuring solid carbide insert bodies, the PCD05 and PCD20 come in the company's X010 insert size with a corner radius of .016" (0.4 mm) and wiper length of 0.43" (1.08 mm).

The Turbo 10 cutter bodies that hold the PCD05 and PCD20 include precision milled pocket seats that are designed to improve runout, stability and tool life by providing optimal contact between the tool body and insert. Integrated through-coolant channels support productivity and promote excellent chip evacuation. Turbo 10 cutters work in slotting, shouldering, ramping, facing, pocketing, plunging and turn milling applications.

For more information contact:

Seco Tools, LLC

2805 Bellingham Drive

Troy, MI 48083

248-528-5444

secotools.us@secotools.com

www.secotools.com/us
