Heavy Right Angle Head for VTL Application

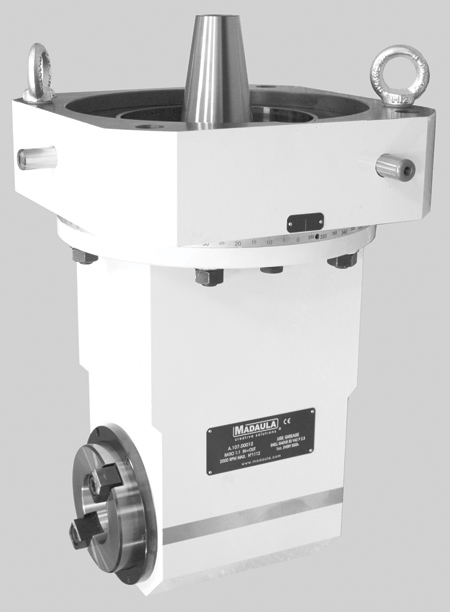

The angle head shown is supplied with a flange mount to the face of the VTL for rigidity. This model has power transmission capability of 40 kW and torque up to 280 Nm. Gear ratio is set at 1:1, with maximum 2,000 RPM output.

Madaula S.A. recently supplied one of its CA-4 heavy-duty right angle heads for use on a vertical turning lathe (VTL). Various lengths are available, up to 1.2 meters in length projecting from the mounting surface.

The output of the angle head is a CAT-50, with a manual retention screw to load CAT-50 tools in and out by hand. Optional outputs include HSK, CAPTO and KM. Internal coolant options are available.

Euro-Technics, Inc. is the North American sales and service representative for Madaula S.A.

For more information contact:

Euro-Technics, Inc.

6192 Providence Drive

Carpentersville, IL 60110

888-600-9570/847-426-8000

eurotechnics@hotmail.com

www.euro-technics.com
