High Resolution Surface Profiling Sensor



OGP (Optical Gaging Products), a division of Quality Vision International (QVI), has introduced its TeleStar Probe high resolution surface profiling sensor. TeleStar Probe is one of many specialized sensors available for OGP multisensor dimensional measurement systems.

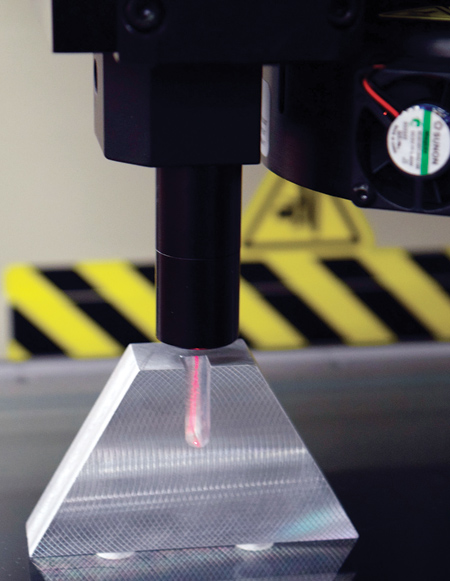

TeleStar Probe is a self-contained off-axis partial coherence interferometric range sensor for surface contour measurement. It offers measured point resolution in the sub-micron (< 0.1 µm) range, and provides enhanced performance on both specular and light-scattering diffuse surfaces. The probe can scan up to 500 data points per second with 1.0 µm accuracy and 0.1 µm repeatability. TeleStar Probe features a 25 mm constant working distance, and its shallow return angle allows measurement deep inside bores and blind holes. TeleStar Probe is mounted in a mechanical deployment mechanism that retracts it out of the way when not in use.

TeleStar Probe uses the same interferometric technology available previously only on OGP SmartScope Quest, and now on OGP's SmartScope ZIP Advance product line. TeleStar Probe may be specified as an optional sensor for new SmartScope ZIP Advance orders, or it may be retrofitted onto existing ZIP Advance systems.

TeleStar Probe is compatible with QVI ZONE3, MeasureMind 3-D MultiSensor and VMS metrology software platforms. ZONE3, QVI's CAD-based 3-D metrology software, features a simple user interface, and its kinematic model simulates the machine, part, fixtures and measuring sensor, updated in real time. Built-in productivity maximizing tools, integrated GD&T functionality and visual validation of measurement intent offer speed and power to the measurement process. ZONE3 supports simultaneous use of multiple sensors, making appropriate tools available for complex measurement tasks.

For more information contact:

Optical Gaging Products

850 Hudson Avenue

Rochester, NY 14621

585-544-0400

800-647-4243

info@ogpnet.com

www.ogpnet.com
