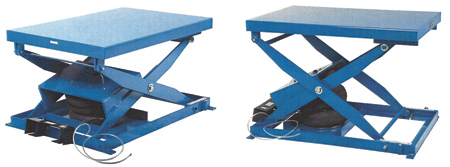

Air Bag Scissor Lift Table



Vestil has introduced its air bag scissor lift tables, ABLT-1000 and ABLT-2000, that are designed to rise to an ergonomic height using factory air. Inflating or deflating the air bag can adjust the table height. The steel construction of the tables is built to meet or exceed AWS standards.

The standard features on both models include adjustable upper travel limits, lubricated bearings and an up/down foot control. The ABLT-1000 features a platform size of 48" x 32", uniform capacity of 1,000 lbs., raised height of 33" and lowered height of 9". The ABLT-2000 features a platform size of 48" x 32", uniform capacity of 2,000 lbs., raised height of 33" and lowered height of 9".

The tables require a 1/2" incoming air line and a filter. Incoming air must be clean, dry and regulated to a minimum of 80 PSI.

For more information contact:

Vestil Manufacturing Corporation

2999 North Wayne Street

P.O. Box 570

Angola, IN 46703

800-348-0868 / 260-665-7586

info@vestil.com

www.vestil.com
