Flexible Shaft Machine



The Suhner Rotomax flex shaft power unit allows a variety of machining operations on a single station, with interchangeable hand pieces available to do the job.

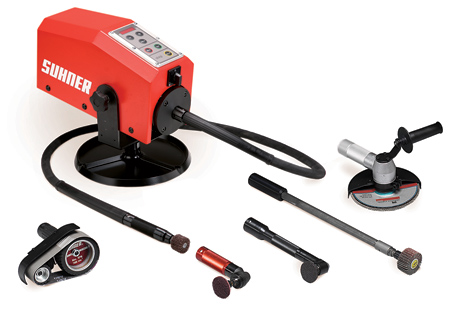

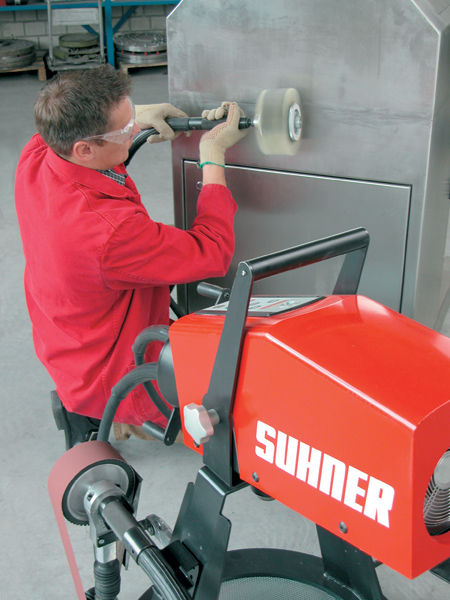

Suhner has introduced the Rotomax flexible shaft machine, a unit with interchangeable hand pieces that allow a user the freedom to perform a wide variety of machining operations with a single machine. The Suhner Rotomax functions as an angle grinder, straight grinder, drum polisher, belt sander, tube polisher or die grinder simply by changing the hand piece. This machine has applications in industrial steel fabrication, polishing operations, sheetmetal assembly, foodservice equipment builds, appliance manufacturing, various stainless steel fabrications including medical and more.

The Suhner Rotomax offers users a range of power from 2.0-4.7 HP and features electronically controlled speeds ranging from 500-15,000 RPM in increments of 100 RPM at the touch of a button. The combination of an industrial grade motor and solid-state electronic control provide constant speed and torque. With no gearing, the Rotomax operates quietly. Other features include soft start, integrated braking and an LED speed gauge display.

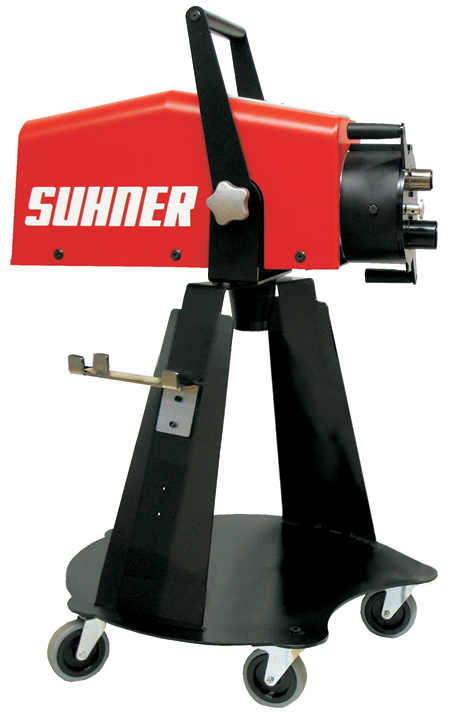

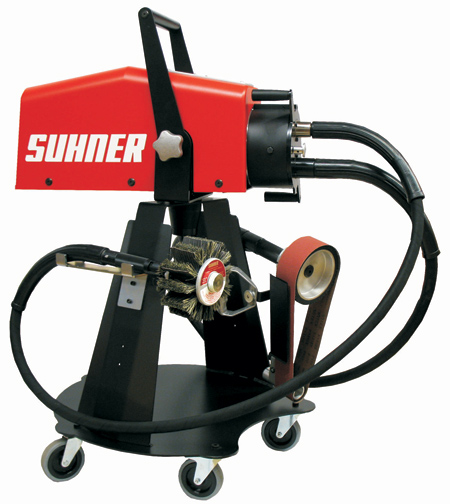

The Rotomax is offered as a hanging model for the user wishing to keep the power flex shaft above the work; on the basic stand, which can be mounted wherever the user desires; or on a specially-designed stable trolley (STM) for portability around the work shop or production line.

For more information contact:

Aaron Beck, National Sales Manager

Abrasives & Power Tools

Suhner Industrial Products, LLC

43 Anderson Rd

P.O. Box 1234

Rome, GA 30162-1234

706-235-8046

info.usa@suhner.com

www.suhner-abrasive-expert.com
