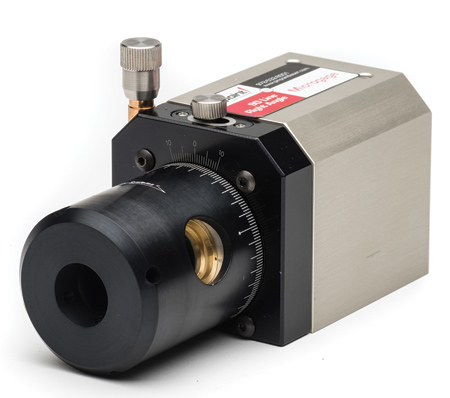

90-Line Right Angle Beam Bender



The enhanced 90-Line is Pinpoint's newest innovation for aligning and checking planar squareness and parallelism on assemblies, machinery and equipment. It is a custom-built accessory to add to the Microgage laser alignment system. The precision alignment results will enable alignment projects to run smoothly. "Checking gantries, web and roll equipment and CNC machine tools for peak alignment and efficiency has never been so fast and easy," said a company spokesperson. The penta-prism provides measurement data at the micron level and is used for bending the laser 90°. "Combined with an alignment detector, the precision penta-prism and alignment detector form a user-friendly housing unit that is versatile in use and in capturing reliable results," said the spokesperson.

Customizable and compact, the 90-Line is encased in aluminum housing that makes it more than an alignment accessory. The laser light beams through the housing unit's control view, which turns full rotation creating a square reference plane. The unit features adjustable knobs for locking the laser beam position and fine angular control. As the laser exits the 90-Line unit, the beam is square to the incoming beam within 0.0006°, or to 0.001", over a distance of 8'. In addition, the nosepiece can be rotated so that the exiting beam forms a plane of light that is square to the incoming laser. The 90-Line uses glass precision optics and is machined from a solid aluminum block with a hard, anodized protective coating.

For more information contact:

Pinpoint Laser Systems

56 Pulaski Street

Peabody, MA 01960

978-532-8001 / 800-757-5383

info@pinpointlaser.com

www.pinpointlaser.com
