500 °F Top Loading Oven

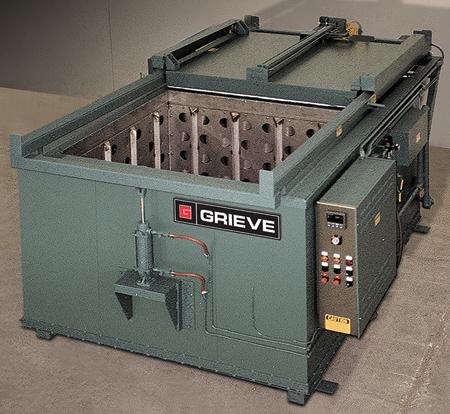

No. 844 is a 500 °F top loading oven from Grieve, currently used for drying water from racks of piston rings at the customer's facility. Workspace dimensions of this oven measure 48" W x 48" L x 36" D. Forty kW are installed in Incoloy-sheathed tubular heating elements, while a 4,200 CFM, 3 HP recirculating blower provides horizontal airflow to the workload.

This oven has 4" insulated walls, an aluminized steel exterior and Type 304, 2B finish stainless steel interior with continuously back welded seams. Additional features include an air-operated rear sliding door, reinforced 1/4" steel plate top and wear bars at sides of workspace. The floor of the workspace is reinforced for 1,000 lbs. loading at removable subway grate.

Controls on the No. 844 include a digital indicating temperature controller and manual reset excess temperature controller with separate contactors and a recirculating blower airflow safety switch.

For more information contact:

Frank Calabrese

The Grieve Corporation

500 Hart Road

Round Lake, IL 60073-2835

847-546-8225

sales@grievecorp.com

www.grievecorp.com
