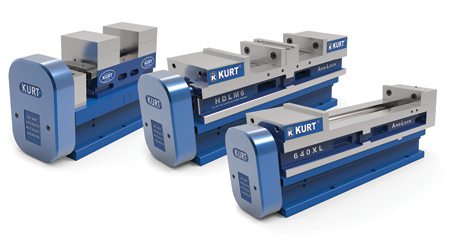

Air Powered Motor Vises for Automated, High Precision Clamping



"Kurt's new line of motorized air vises provides an industry first in utilizing air powered motors to provide consistent preset clamping force and programmable vise opening if desired," said a company spokesperson. These vises are suitable for automated, robotized cells and applications requiring consistent clamping not easily attained by manual operation.

Using an optional 3 mm proximity sensor, the Kurt air powered motor vise is easily set to open and stop precisely at preconfigured positions. It operates on 20-100 PSI and clamps to stall. Desired clamp force is attained through an air FRL setting. The vises utilize push-to-connect air fittings for easy set-up, and mounts to tables or fixtures using sine keys and 1/2" bolts. Additional options are available for adding encoder for programmability or double start thread motor option to increase stroke speed.

This air motor option is available on most Kurt vises including the all-new DX6 vise, plus many Kurt single station vises, double station vises ranging in sizes of 4, 6 and 8" models and is also available on smaller vise models such model SCMX420.

For more information contact:

Kurt Manufacturing Company

Industrial Products Division

9445 East River Road NW

Minneapolis, MN 55433

877-226-7823

workholding@kurt.com

www.kurtworkholding.com
