New Micro Gripper Allows Fragile Part Handling

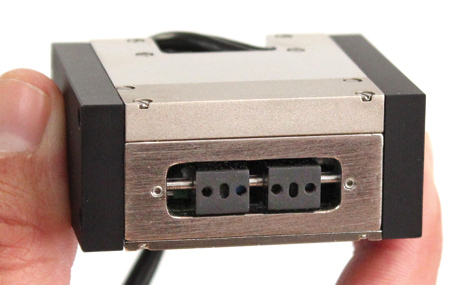

SMAC Moving Coil Actuators has introduced details for its new MGR6 Series Micro Gripper. The SMAC MGR6 Series Micro Gripper features a very low moving mass with two independent axes, and, due to a patented Soft-Land routine, is capable of light, controlled forces. It can be used as an end effector on third party robots.

MGR6 series micro gripper specifications include:

  • Dimensions: 55 x 47.5 x 24 mm
  • Stroke: 10 mm (five each)
  • Peak force: 3.8 N
  • Force constant: 11.5 NA

Applications that have been accomplished with the MGR6 include tiny semiconductor (0201) components handling, small lens handling, stent/catheter handling, sample tube handling and electronics assembly. These applications make use of the company's patented Soft-Land feature, programmable down to as low as 2.5 gram force (depending on controller), and two independently controlled gripper fingers to pick up asymmetric and/or off-set parts.

"Small part assembly is increasing due to consumer product trends such as smart phones and watches," said a company spokesperson. "These parts are too small and fragile to be handled by most humans. The product also feeds back what happened during the process (i.e., pick up occurred, correct position achieved, part was put down, etc.). The MGR6 enables increased small part assembly, particularly of complicated small products that are made in very high quantities."

"Currently, small grippers are primarily pneumatic. Guides are not good, forces are too high due to seal friction and grippers are single axis, so off-set parts can be damaged.

"SMAC's built-in sensor feedback system gives SMAC's devices, including the Micro Gripper, the unique mechatronic ability to perform a task and verify its quality at the same time. This would allow the actuators to quality check key processes 100% in real time and feedback the results."

For more information contact:

SMAC Moving Coil Actuators

5807 Van Allen Way

Carlsbad, CA 92008

760-929-7575

www.smac-mca.com
