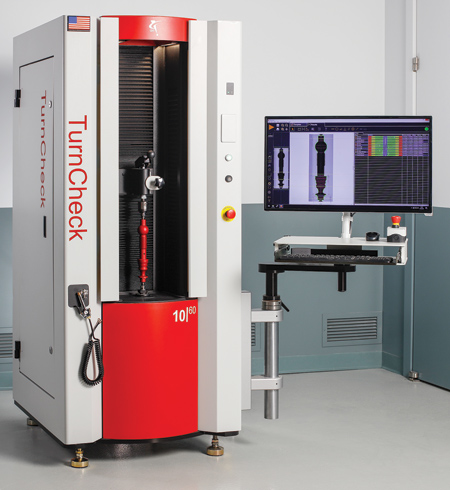

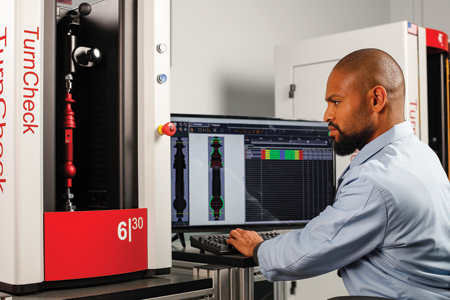

TurnCheck Family of Shaft Measuring Systems



Quality Vision International (QVI) has announced its newest precision optical instruments for measuring shafts and other cylindrical parts, QVI TurnCheck.

QVI TurnCheck systems address the major sources of measurement uncertainty found in shaft measurement by focusing on advanced optics, thermal stability and ease of use.

TurnCheck optics were designed and manufactured by QVI. The illumination system found in TurnCheck systems produces highly collimated light with a constant wavelength, eliminating the wrap-around effect on turned parts. The receiving optics are fully telecentric with each element designed to eliminate distortion. "The result is a crisp, uniformly magnified image across the entire field of view, with no edge effects or exclusion zones," said a company spokesperson.

TurnCheck systems are designed to deliver accurate measurements in shop floor conditions where vibration and temperature variation are common.

"TurnCheck system software is intuitive and intelligent," said the spokesperson. "There is no need to adjust lighting, focus or image tools-the system optimizes these features automatically. Simple controls, easy loading and unloading and intelligent tools let operators focus on what they want to measure, rather than how they should be measuring it, allowing for fast set-up time without the need for extensive training."

Designed and manufactured in the U.S., TurnCheck systems are offered in three different model ranges to accommodate a range of parts up to 1,200 mm in length.

For more information contact:

Quality Vision International Inc.

850 Hudson Ave.

Rochester, NY 14621

585-544-0450

info@qvii.com

www.qvii.com/TurnCheck

IMTS 2018 Level 3

Booths E-135602 and N-236404
