Multifunctional Indexable Cutter

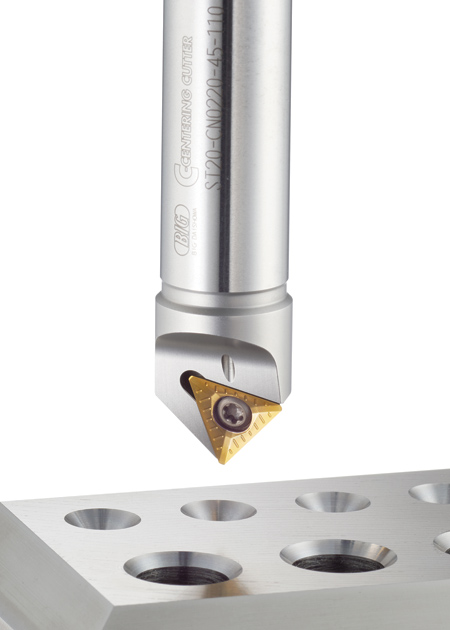

BIG KAISER has introduced two versions of the C-Centering cutter, a multifunction cutter capable of spot drilling, centering and chamfering.

The cutter is an indexable cutter that uses a specialized insert that can start a hole from a solid piece. It can also perform spot drilling and 90° chamfering at the same time or can strictly be used for hole chamfering.

During spot drilling, the insert nose radius can be easily chipped with general cutters since the center has a peripheral speed of zero. The coolant hole in the C-Centering cutter allows cooling of the cutting edge, which reaches high temperatures during spot drilling, and enables immediate chip evacuation. This prevents chipping during spot drilling.

"A benefit of indexable tools is that its life is significantly extended," said a company spokesperson. Once a carbide tool is worn out, there is no other use to it and ends up being thrown away. With an indexable cutter, a small insert can be replaced when worn out, so the cutter body can be reused multiple times.

A three insert C-Centering cutter, which is only used for chamfering, is suitable for general chamfering and results in a reduction of cycle time over using the single insert version.

For more information contact:

BIG KAISER Precision Tooling Inc.

2600 Huntington Blvd.

Hoffman Estates, IL 60192

888-TOOL-PRO / 224-770-2999

bigkaiser@us.bigkaiser.com

www.us.bigkaiser.com
