Turn-key System for Applying Highly Viscous Lubricant to Tooling or Stock

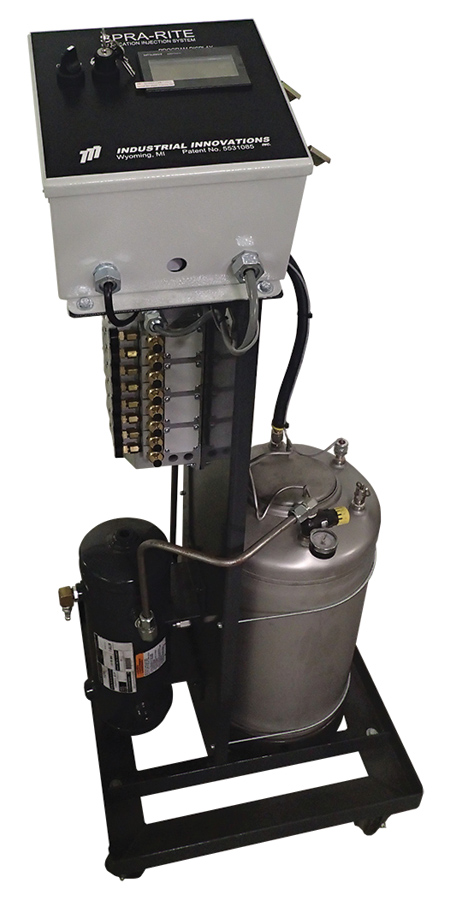

Industrial Innovations offers its Spra-Rite Ultra Lube system, a turn-key solution for applying highly viscous lubricants of up to 800 cps to the stamping or drawing tooling and/or the stock at a pre-determined press stroke interval. The pedestal design allows for easy transport from press to press, making it a suitable solution for smaller shops that are processing high strength and advanced materials.

The Ultra Lube system atomizes the lubricant into an ultra-fine spray at the nozzles, which are air-controlled and capable of fine flow adjustments, enabling users to apply a range of lubricant from very minimal to maximum flow. The process control module offers numeric programming for up to 10 injector valves and the ability to store 200 part recipes. As with all Spra-Rite solutions, each injector is independently controlled, allowing for precise control of lubricant placement and volume as it is applied to the workpiece or tooling. The controller also allows for users to independently skip press cycles for pre-programmed stroke counts.

The Ultra Lube solution comes complete with an injector manifold, Beta controls, nozzles, tubing and a five-gallon stainless steel reservoir with a liquid regulator, air relief valve and strainer.

For more information contact:

Industrial Innovations

2936 Dormax Street SW

Grandville, MI 49418

616-249-1525

www.industrialinnovations.com
