Robot Includes Preprogrammed Actions

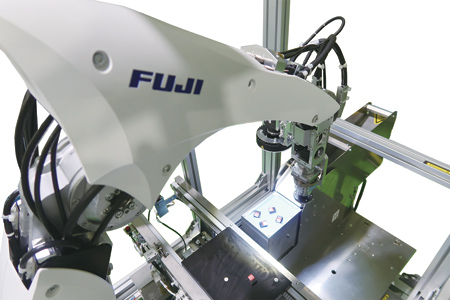

Designed for the assembly of manufactured parts, Fuji Machine's SmartWing robots offer easy, efficient and accessible automation.

"Engineered with cutting edge technology, SmartWing robots offer enhanced speed and ease of set-up. The elimination of teaching with physical guidance reduces set-up time by 40% compared to contemporary systems," said a Fuji spokesperson. In addition, with the inclusion of pre-programmed actions, or Waza, set-up only requires entering "what" and "where" information to create robot actions. This reduces the time required to create robot programs. The SmartWing's Coordinate Compensation Technology is designed to ensure absolute positioning accuracy and allows movement specification by simply entering coordinate instructions. A Vision Data function detects when items shift position and compensates movement accordingly.

For efficient, quick-start production, the SmartWing's included Vision System is pre-calibrated with the necessary settings for immediate use upon installation. The robot features a high-resolution color camera that detects even highly reflective metal workpieces. Data Matrix, QR codes and other 2-D codes are supported and can be read by the SmartWing.

Adding to the efficiency of the SmartWing is its ease of operation. No special training is required to create vision processing data and robot movement data. Included as standard with the robot is a Job Editor tool for offline job creation, which enables high-mix production. Creating a production job requires only targeting the workpiece, accessing Waza from the Job Editor library and entering the working coordinates. SmartWing's Shape Editor tool allows for the easy creation of vision processing data. A simple selection of the workpiece area automatically extracts contours and colors. An optional SmartWing Simulator tool is available for the accurate reproduction of robot movement on a computer. Using this tool, cycle time and interference can be checked before actually moving the robot.

A Robot Cell Kit is included with the SmartWing for the assembly of a flexible Robot Cell system.

Some Smart Factory applications for this robot include workpiece sorting, accurate long screw placing, loose part sorting and arranging and dual robot cooperation for inserting and tightening screws.

For more information contact:

FUJI Machine America Corp.

171 Corporate Woods Pkwy.

Vernon Hills, IL 60061
