Lasertube Provides 3-D Cutting

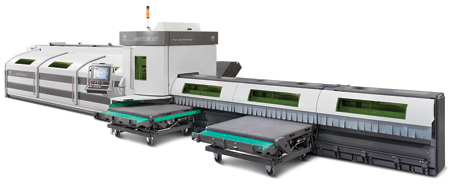

BLM Group USA offers the LT7, a new generation of Lasertube capable of 3-D cutting. The LT7 is designed to improve productivity and accuracy through innovations in tube management and handling.

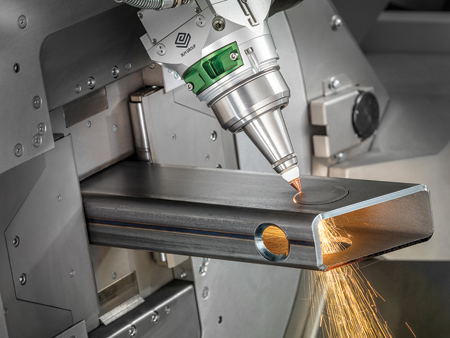

The machine features a 3 kW fiber laser that provides a broad working range that allows for cutting up to 6" round, square and rectangular sections. Special sections and open profiles can also be processed. Loading chains can be extracted from the rear standard bundle loader within seconds, providing the flexibility to load a single bar or open section quickly and simply. The loading and unloading systems also adapt to accommodate short and long parts with innovative tube supports throughout the process.

At the end of each production batch, the LT7 configures itself for the next batch for quick changes in production and higher productivity, regardless of the new sections to be made - round, square, special and even open profiles. No manual adjustments are necessary. This advantage results in higher output and a lower cost per part.

"The LT7 further supports productivity and quality enhancements through the machine's mechanical rigidity, which allows high levels of acceleration without compromising accuracy," said a company spokesperson.

Exclusive patented technical solutions from BLM GROUP allow ease of use for operators, regardless of their experience. Technologies include:

  • Active scan - eliminates errors induced by distorted tubes
  • Active tilt - uses focus head movement to provide fast processing of small features
  • Active focus - provides error free cuts regardless of changes of material and thickness
  • Active marking - offers dynamic part marking for complete production traceability
  • Active speed - ensures higher cutting quality on critical jobs
  • Active piercing - increases piercing speed and reliability even on inconsistent material quality and thickness.

Two exclusive software programs enhance the versatility of the LT7 Lasertube, helping to keep production under control and bring design ideas to life: Protube and Artube.

The Protube monitoring system is designed to help users to make accurate time and cost estimates based on processing time for an entire production batch. The system also prepares work orders and sends them to the machine, while a remote management feature provides real-time production progress monitoring, system operating statistics, estimates to the next batch change and more. Protube can be integrated with an ERP system to automatically distribute work orders to all connected BLM GROUP machines and technologies.

Artube is a 3-D CAD/CAM software that allows users to move from a design idea to a part in one click - simply enter tube dimensions to desired cuts to go straight to production. The software can also design a more complex frame through clear, 3-D graphics or users can import other CAD programs and send everything needed to start production to the machine immediately.

For more information contact:

BLM Group USA

46850 Cartier Dr.

Novi, MI 48377-4117

248-560-0080

sales@blmgroupusa.com

www.blmgroup.com/en/lasertube/lt7
