High Efficiency EDM Drill Machines

Methods Machine Tools, Inc. recently partnered with Ocean Technologies and now offers Ocean Technologies EDM drill machines, including the River 300.

Ocean Technologies' EDM drills models range from simple-to-use manual machines to fully programmable 5-axis machines capable of machining complex aerospace parts. Ocean Technologies EDM drills have patented technologies for break-through detection, and a proprietary HP1+ Power Supply for reduced wear and shorter burn times while reducing energy consumption.

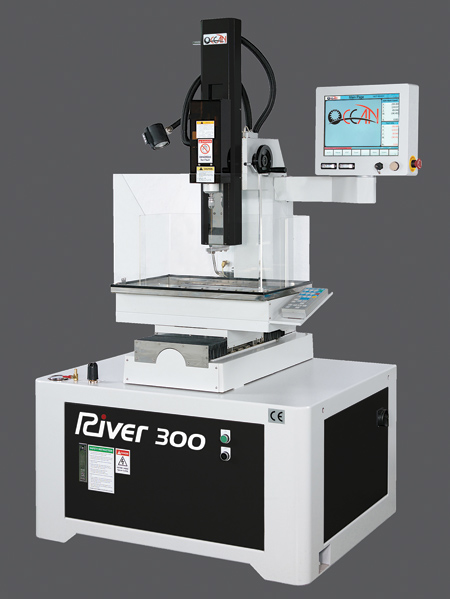

The compact, entry-level River 300 features high-efficiency linear guideways and a 100L DI/Filter comes standard. The X-axis travel measures 11.8" (300 mm), Y-axis at 7.9" (200 mm), Z-axis at 11.8" (300 mm) and W-axis at 13.8" (350 mm). Table dimensions are 13.8" x 9.9" (350 x 250 mm). Maximum workpiece height is 11.8" (300 mm) with maximum workpiece weight capacity at 330 lbs. (150 kg).

E-Learning software is featured on the River 300, as well as on all Ocean CNC models, allowing new operators to easily run the machine or seasoned operators to review particular processes on the fly.

For more information contact:

Steve Raucci

National Sales Manager

Methods Machine Tools, Inc.

65 Union Avenue

Sudbury, MA 01776

978-443-5388

sales@methodsmachine.com

www.methodsmachine.com
