Exact Metrology Now Represents GOM CT in U.S.



Effective immediately, Exact Metrology has become a distributor of the GOM CT scanner in the U.S. The announcement was made by company co-presidents Steve Young and Dean Solberg. GOM is an established global company and provider in structured light scanning technologies. The company develops, produces and distributes software, machines and systems for industrial and automated 3-D coordinate measuring technology, 3-D computed tomography, as well as 3-D testing based on the latest research results and innovative technologies.

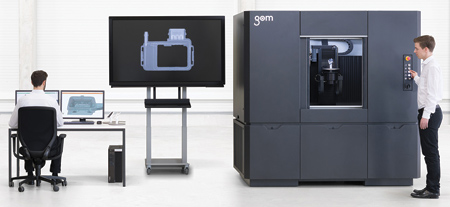

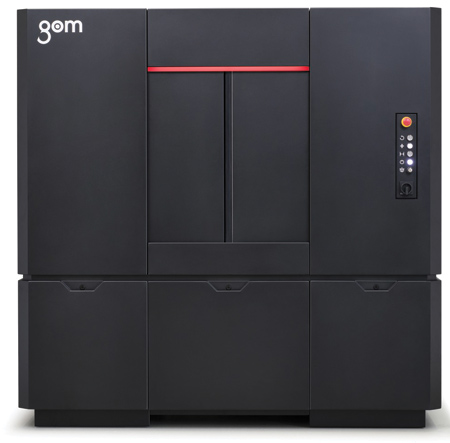

The computed tomography scanner GOM CT provides 3-D data of internal and external component geometries in high resolution. "The GOM CT produces the finest details visible throughout the component, simplifying initial sampling, tool correction and inspection tasks during production," said a company spokesperson. It captures complex components including the "inner workings" in a single scanning process, so that the user receives a complete image of the test specimen for form and position analysis or nominal/actual comparisons. The system shows its greatest strengths when digitizing smaller plastic and light metal parts.

High-Contrast X-ray Detector and 5-Axis Kinematics

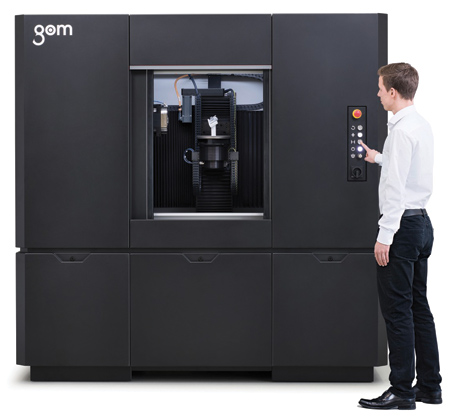

To achieve a high level of detail during component digitization, the components of the GOM CT were perfectly matched to each other: A high-contrast 3k X-ray detector generates a very fine pixel grid (3008 x 2512 pixels) and thus lays the foundation for high-precision detection of the measured components. Five-axis kinematics with integrated centering table makes it easier for the user to position the component optimally in the measuring volume, so that the measurement is always performed with the best possible resolution. An additional plus: Within the measuring volume (diameter: 240 mm, height: 400 mm) several objects can be measured simultaneously in one scan, further reducing processing times. "Thanks to the proven GOM technology the GOM CT ensures high precision and repeatable measurement results," said the spokesperson.

Data Acquisition and Evaluation in One Software Package

As with all GOM metrology systems, the control of the device, data acquisition and evaluation are combined in a single software package. This means that no further software is required; the chain from recording the raw data to creating the measurement report is greatly simplified.

Exact Metrology will house a GOM CT scanner at its Brookfield, WI, location. Once there, it will be used for customer demonstrations and educational purposes, as well as contract scanning.

For more information contact:

Steve Young

Exact Metrology, Inc

20515 Industry Avenue

Brookfield, WI 53045

262-533-0800 / 866-722-2600

stevey@exactmetrology.com

www.exactmetrology.com/metrology-equipment/gom-ct-scanner
