End Mill for Small Diameters

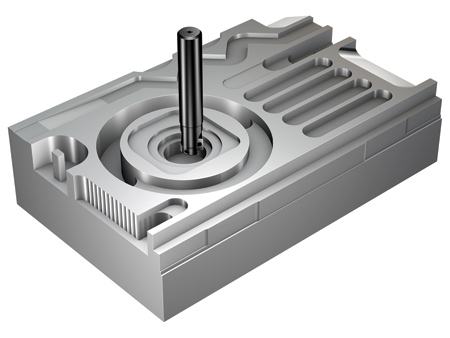

CoroMill 390 end mill with size 07 inserts

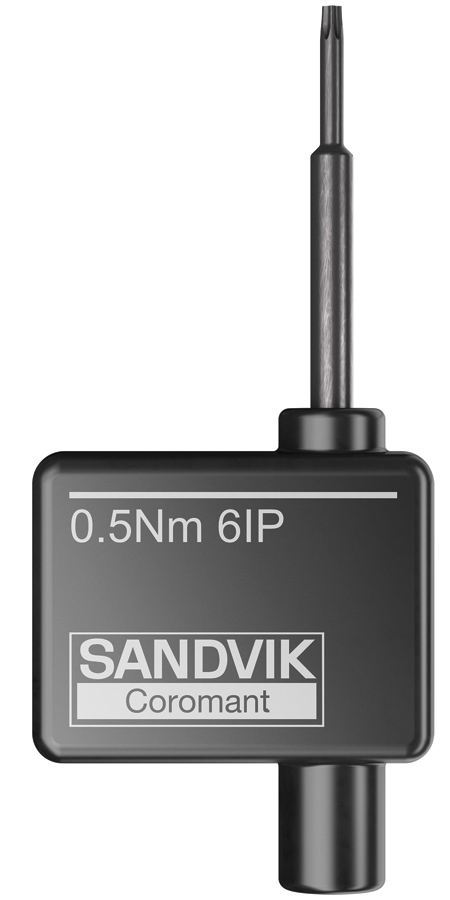

Torque key solution for the size 07 inserts

Sandvik Coromant offers an end mill for small diameters. The CoroMill 390 with size 07 inserts is a versatile cutter that is designed for shoulder milling, deep shoulder milling, edging, linear and helical ramping, plunge milling, slot milling and face milling.

Suitable for a variety of machine types, the CoroMill 390 with size 07 inserts is built for mixed production and can be used with different materials and applications. "General engineering shops, as well as specialized business segments, such as automotive and oil and gas component manufacturers, can benefit from its universal capabilities," said a company spokesperson.

Grades for the CoroMill 390 with size 07 inserts are available for a variety of materials. The new insert grade GC1130, produced with Zertivo technology, gives this cutter an extra dimension of security when milling steel. The smaller inserts deliver higher cutter-teeth density for enhanced productivity.

A feature of this tool is the torque key that is specifically designed for size 07 inserts. This key provides consistent clamping. It has built-in spring functionality that allows users to mount inserts with the correct clamping force for reliable and consistent tool life. Coolant-through technology is standard on the CoroMill 390 with size 07 inserts for additional heat and chip control.

For more information contact:

Sandvik Coromant

1702 Nevins Road

P.O. Box 428

Fair Lawn, NJ 07410-0428

800-SANDVIK / 201-794-5000

us.coromant@sandvik.com

www.sandvik.coromant.com
