Clean a Machine Tool Coolant Sump in Less than Two Minutes

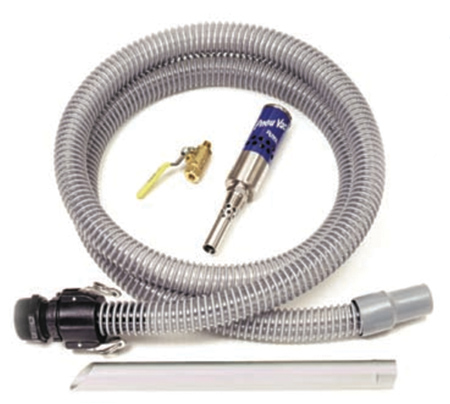

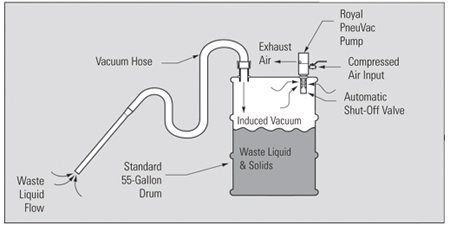

Royal Products offers the PneuVac pump, a simple device that uses a compressed air-powered venturi to create a vacuum. To operate the PneuVac, attach the pump and hose to a standard 55-gallon drum, hook up compressed air supply to the pump, insert the free end of the suction hose into the sump or storage tank and open the air valve. The coolant and sludge is drawn through the hose and deposited into the drum.

"The Royal PneuVac pump can fill a 55-gallon drum in 90 seconds. Conventional electric pumps can take up to one hour to move the same amount of liquid," said a company spokesperson. "This pump not only removes liquid, but will also pick up sludge, metal chips and other debris that may clog or wear out impeller-type pumps."

A baffle system limits noise level. The PneuVac pump requires very little maintenance because only compressed air flows through the pump body itself.

The entire pump, except ball valve, float and O-ring, is made from either stainless steel or aluminum. The PneuVac pump is powered by compressed air, which eliminates the possibility of electric shocks often associated with motor-driven pumps. An automatic shut-off valve activates when the drum is full.

For more information contact:

Royal Products

200 Oser Avenue

Hauppauge, NY 11788

800-645-4174

info@royalproducts.com

www.royalproducts.com
