Drilling Units for Value-Priced Production Use



ECONOmaster drilling units from Suhner are suitable for medium-duty production cutting of light metal and composite materials, among others. Standard and custom models available to suit various applications and mounting requirements.

Suhner offers its ECONOmaster line of affordably priced drilling units that are customizable to suit specific operation. The solution is suited for multiple materials, such as light metal, composite, plastic and more.

"Because these units are entirely produced at the Suhner factory in Rome, GA, response times for delivery and customized construction are minimal," said Division Manager Lee Coleman. "We recognized the need to bring our global technology to a local level, here in America, and the ECONOmaster is a key step in that process." Suhner is based in Switzerland, with plants and distribution centers worldwide.

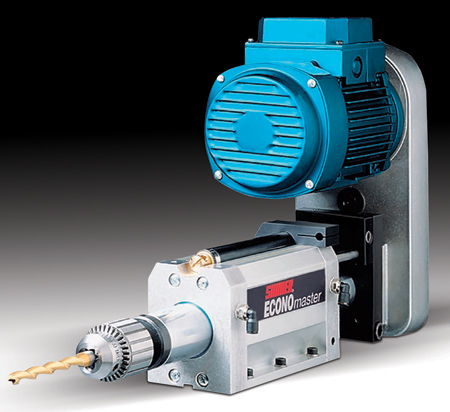

The ECONOmaster drilling unit features low power and air consumption, adjustable motor housing, adjustable total stroke up to 4", hydraulic feed control cylinder, J33 taper spindle end, 0-1/2" drill chuck, electric front and rear position limit switches, belt tensioner and chrome-plated quill. Basic unit weight is 45 lbs.

Other key features include adjustable feed stroke of 1/2" to 3", 400 lb. thrust at 85 PSI, operating pressures to 110 PSI, TEFC/IP56 protection, standard 230V/460V, concentricity of .002" TIR, speed ranges to 9,600 RPM and an air connection retract/advance of 1/4" to 27 NPT.

ECONOmaster drilling units can be supplied with an adjustable stand, inline vertical configuration and multiple spindle heads for medium-duty production drilling, with many other spindle options and toolholders available.

For more information contact:

Suhner Industrial Products Corp.

Machining Division

25 Anderson Road SW

Rome, GA 30161

706-235-8046

machining.us@suhner.com

www.suhner.com
