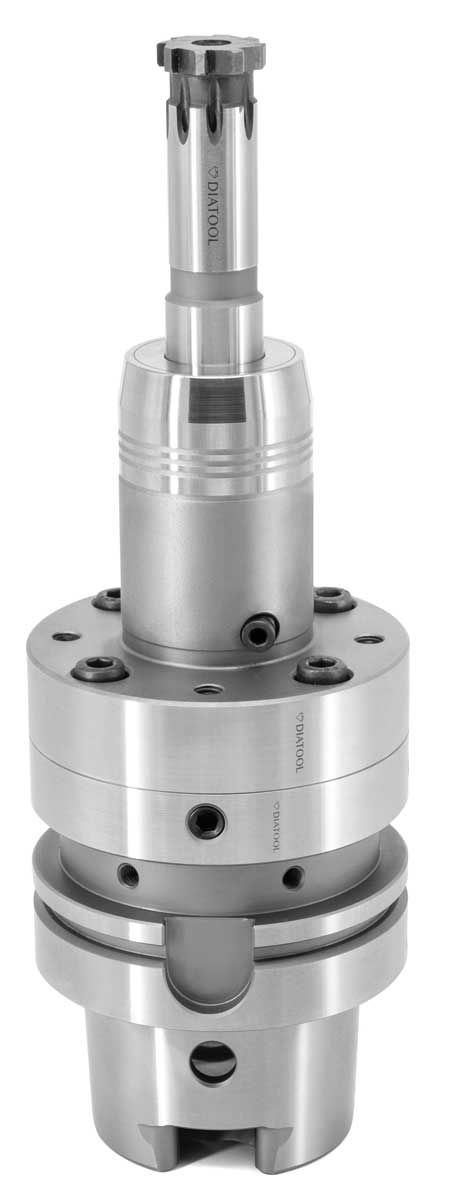

Top Speed Disc for High-Volume Reaming Applications



New Diatool Top Speed Disc (TSD) features more blades to deliver 30% faster cycle times, making it suited for high-volume reaming applications. Efficiency and cost-effectiveness are designed into the TSD.

"The multiblade design features uneven spacing of cutting edges to create exceptionally round and cylindrical bores," said a company spokesperson. "It arrives set to size and requires no additional setup, delivering ready-to-cut functionality."

The holders are equipped with internal coolant as a standard feature. Available in standard sizes from 16 mm to 32 mm (0.63" to 1.26"), TSD is suited for high volume, high-precision reaming applications in steel and grey cast iron components like yokes, engine blocks, rocker arms and more.

"The solid reamer body is more stable than comparable modular designs with multiple connections, which can produce tolerance stack up," said the spokesperson. "The body is a one-time investment, while the disc can be replaced to OEM specs up to 5x for overall cost savings and efficiency. Total cost of ownership is far less than comparable tooling options."

The straight fluted TSD helps ensure the optimal bevel lead geometry can be utilized for performance and chip control throughout its service life. Left-hand fluted design also available for through hole applications.

For more information contact:

Monaghan Tooling Group

30 North Clinton Street

Dayton, OH 45402

800-732-4565

sales@monaghantooling.com

www.monaghantooling.com
