Miniature Bearings Line

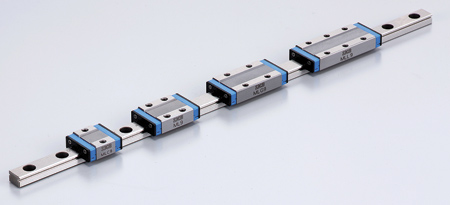

IKO's standard miniature bearings line is now available in rail widths from 1 mm to 25 mm with wide-bearing options as high as 42 mm. They are also available in up to four different lengths: compact, standard, long and extra-long in many sizes.

The variety of widths and bearing lengths enables designers to easily tailor a miniature bearing system to specific payload requirements. "IKO's largest miniature linear bearings with the larger bearing lengths is designed to handle much higher dynamic and moment loads than expected from a miniature unit," said the spokesperson. The largest miniature models, for example, have dynamic load ratings in excess of 16,600 N (LWLG25) and moment load ratings over 320 Nm (MLFG42) in the roll axis.

To ensure its miniature bearings keep running smoothly, IKO has integrated its C-Lube long-term lubrication system into many units, which offers a controlled release of lubricant over 20,000 km of operation. C-Lube technology can be integrated into bearings as small as 3 mm wide.

IKO's miniature bearings have other options to increase design flexibility, including:

  • Interchangeable components, even with light preload
  • Corrosion resistant coatings
  • Ceramic balls
  • Stainless steel or carbon steel rails
  • Stainless steel end plates for applications with thermal extremes
  • Bottom-mounted, threaded mounting hole rails.

Southwest

For more information contact:

IKO International, Inc.

Southwest Operations

8105 N. Beltline Rd., Ste. 130

Irving, TX 75063

800-295-7886

swo@ikonet.co.jp

www.ikont.com

Southeast

IKO International, Inc.

Southeast Operations

2150 Boggs Rd., Ste. 100

Duluth, GA 30096

800-874-6445

seo@ikonet.co.jp

www.ikonet.com

Northeast

IKO International, Inc.

East Coast Operations

91 Walsh Dr.

Parsippany, NJ 07054

800-922-0337

eco@ikonet.co.jp

www.ikont.com

Midwest

IKO International, Inc.

Midwest Operations

101 Mart Street, Unit-G

Wood Dale, IL 60191

800-323-6694

mwo@ikonet.co.jp

www.ikont.com

West

IKO International, Inc.

West Operations

9830 Norwalk Blvd., Suite 198

Santa Fe Springs, CA 90670

800-252-3665

wco@ikonet.co.jp

www.ikont.com
