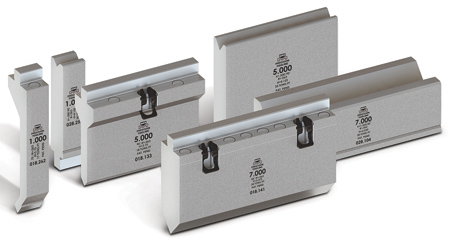

American Precision Style Press Brake Tooling Featuring Maglock



Mate Precision Tooling has announced the expansion of its press brake tooling line with the introduction of American Precision Style press brake tooling featuring the all new Maglock Magnetic Safety System.

Compatible with press brake laser and optical safety systems, this full line of punches and dies is designed for press brakes configured with American style holders and is available in lengths from 1/2" to 18".

Maglock uses rare earth magnets to attach and seat the punch to the holder with no separation between the surfaces. The magnets are specifically and proportionally added along the punch shoulder so that the "up force" of the magnet is localized and directed at the contact surface of the punch holder.

Designed to be safe and reliable, installation of a Maglock punch always results in the shoulder seating onto the holder. The strong yet balanced Maglock connection also makes lateral (left or right) position adjustments easy. Once the punches are seated in the desired position, the holder clamping system must be engaged. Maglock does not claim to be and is not intended to be a replacement of the holder clamping system.

"Unlike punches with mechanical designs (buttons, springs or pins) that become unsafe to use if the mechanism is damaged or missing, Maglock's non-mechanical design works safely all the time. Mate punches with Maglock offer additional safety if electrical, hydraulic or pneumatic power to the brake is cut off or damaged," said a company spokesperson. In lengths over 4", the design includes a lever to facilitate punch removal.

The reversible/symmetrical punch tang design enables the punch to be installed facing forward or backward. With no protrusions, the tang simplicity also makes Mate American Precision Style punches suitable for front loading tooling into the press. Designed with a .500" tang, Mate punches can be used in any holder system that receives a .500" tang, regardless if the holder is designed for mechanical designs or tools with hooks. Mate punches and dies with a standard profile all have a uniform height, which is important for operator safety when used with laser or optical safety systems.

Mate press brake tooling is induction hardened, and critical working surfaces are precision ground to exacting tolerances for quality and predictability.

Mate's American Precision Style is available as "buy-by-the-inch" so customers can specify and buy the tooling length required by the part design.

For more information contact:

Mate Precision Tooling

1295 Lund Blvd.

Anoka, MN 55303

800-328-4492

marketing@mate.com

www.mate.com
