Surface and Profile Grinding Machine

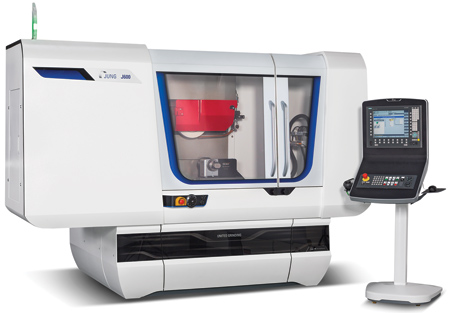

The J600 surface and profile grinding machine from the JUNG brand

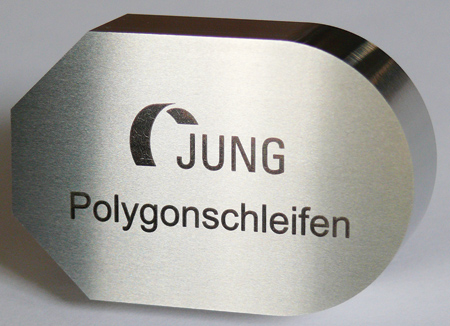

The polygon grinding software extension enables grinding of any 360° contours in a single clamping

The J600 is a surface and profile grinding machine for the production of precision workpieces with enhanced surface quality. It offers a range of application possibilities - from individual component production through to small batch production in a variety of industries. "Designed for a grinding range of 300 x 600 mm, the J600 shows its strengths when grinding applications that require high reproducibility. Requirements that are standard in the die and mold industry," said a company spokesperson.

The J600 consists of a modular system, designed to enable the machine to be optimally configured for the respective customer requirements. The J600 largely owes its damping characteristics to the EasySlide hydrodynamic guideways in the X-axis. High-precision ballscrews help enable an oscillation frequency of up to 330 strokes/min. A maximum table speed of 50 m/min helps achieve high cost-effectiveness.

The design of the J600 brings additional improvements with it. The divided sliding door enables optimal access to the working area and for loading with lifting gear. The table can be loaded with up to 400 kg.

The combination of electronic handwheels and automatic cycles results in an additional highlight - the EasyMode - for semi-automatic, manual grinding. This function enables users to achieve increased machine availability, even without CNC knowledge.

The J600 polygon grinding software extension enables grinding of a variety of 360° contours in a single clamping. External cylindrical and noncircular grinding tasks can also be performed with high profile accuracy. "The complete J600 package offers users flexibility and workpiece diversity," said the spokesperson.

For more information contact:

UNITED GRINDING North America, Inc.

510 Earl Blvd.

Miamisburg, OH 45342

937-859-1975

info@grinding.com

www.grinding.com
