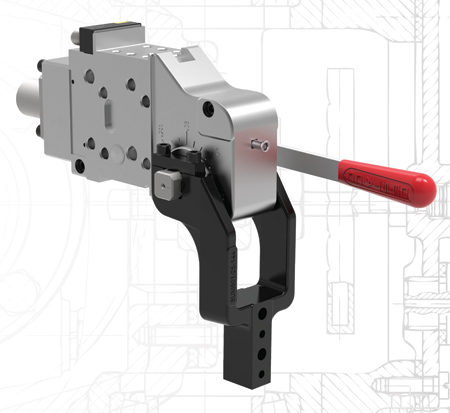

52H-3E Series Enclosed Manual Clamps



DESTACO enclosed manual and power clamps are designed to meet the rigorous requirements of automotive and sheet metal processing applications, while lasting millions of cycles.

The 52H3E series manual clamps are built to withstand the harshest of manufacturing environments and designed to deliver enhanced clamping power with high flexibility.

52H3E's highlights/options include:

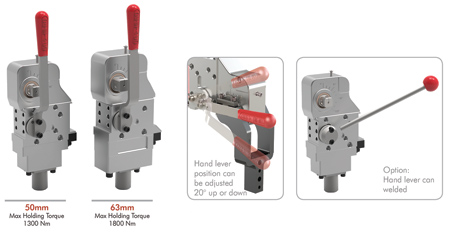

  • Two sizes available: 50 and 63 mm
  • Integrated sensor package
  • Compact, enclosed aluminum body
  • Optional U-arms and lateral arms available

Other features:

  • Low/no maintenance
  • Easily adjust arm opening angle with one tool
  • Hand lever is adjustable for better ergonomics
  • Infinite arm opening adjustment (up to 135°)
  • Toggle locking mechanism ensure secure clamping
  • Multiple mounting surfaces provide greater flexibility
  • Conform to NAAMS and Euro mounting standards
  • Same mounting pattern and surfaces as 82M3E power clamps

The 52H3E clamps are suitable for automotive, industrial, aerostructure and consumer goods in assembly, welding and fixture/testing applications.

With an M5 Allen wrench, users can adjust the arm opening angle to desired opening, and tighten to 20 Nm.
