Customized Recirculating Oven for Auto Supplier



Lucifer Furnaces recently delivered a large 4000 Series Oven to a leading automotive supplier in the U.S.

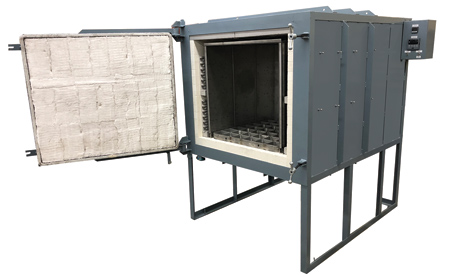

Model 42-T36 has a chamber size of 30" H x 30" W x 36" L, heating to 1,200 °F with 35 kW of power. This model is complete with a high CFM rear-mounted fan assembly to recirculate the heated air uniformly throughout the chamber. A stainless-steel liner isolates the heating elements from the work area and directs air forward over the heating elements and back through the chamber in a horizontal pattern for uniform heating.

This furnace was customized with a heavy-duty cast work tray that sits on the floor of the chamber inside the liner area to support the workload and protect the floor brick. The horizontal swing door is lined with lightweight pyroblock insulation with a ceramic fiber gasket to reduce heat loss around the chamber opening. A safety microswitch automatically shuts off power to heating elements and fan when door is opened, eliminating electric shock and heat blast hazards to the oven operator.

Controls include a Honeywell digital time proportioning temperature controller accessorized with a high-limit controller for safety in the event of a high temp excursion.

For more information contact:

Lucifer Furnaces, Inc.

2048 Bunnell Road

Warrington, PA 18976

800-378-0095

info@luciferfurnaces.com

www.luciferfurnaces.com
