Turning Center with Automation Package

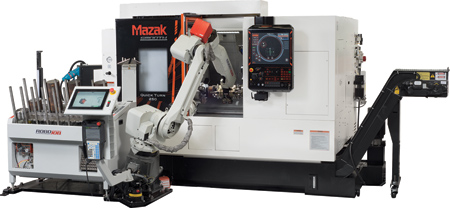

Mazak Corporation recently demonstrated its QUICK TURN 250 turning center paired with a RoBoJob TA200 automation package. Capable of machining workpieces up to 13.78" (350 mm) in diameter, the QUICK TURN 250 is made even more productive with the addition of the comprehensive automation package.

The RoboJob TA200 automation package includes an articulating robot with a 44.1-lb. payload capacity, dedicated loading/unloading station and an equipped Area Scanner to create an open layout. The robot's dual three-jaw grippers can accommodate parts ranging from 0.39" to 6.69" (10 mm to 170 mm) in diameter, while servo-driven lift tables assure easy loading of large stacks of pre-cut material.

The 2-axis QUICK TURN 250 comes equipped with a 12-position, direct servo-driven turret that accepts bolt-on tooling and eliminates the use of belts for enhanced indexing speed and reduced long-term maintenance. The machine's headstock has a 10" chuck mounted on a 35 HP (26 kW), 4,000 RPM integral spindle motor for heavy-duty metal removal. The QUICK TURN 250 is offered in 20", 40" and 60" center distance models.

The machine's fully CNC programmable servo-driven tailstock provides simple, precise and automatic control of the Z-axis directional movement and thrust force settings. The electronic AC servo motor and ball screw-driven tailstock generates consistent holding pressure to support long, heavy workpieces for consistent high-accuracy turning.

Mazak's MAZATROL SmoothG CNC offers the flexibility of both EIA/ISO programming as well as MAZATROL conversational programming that makes it fast and easy to generate programs for quick changeovers or high-production part applications. The controls also feature advanced hardware and software functions that help ensure high productivity and performance accuracy.
