Toolholder for Problematic Clearance Applications

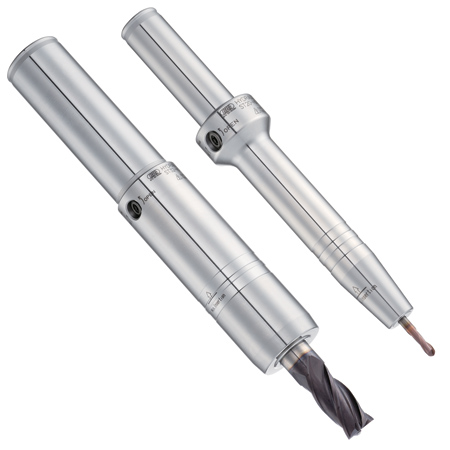

BIG KAISER, a provider of high-precision tooling systems and solutions for the metalworking industries, has announced its HDC straight shank holder to the market, used for increased versatility. The slim design provides enhanced balance, concentricity and is engineered for reaching into confined areas.

"Hydraulic chucks are excellent toolholders for machining processes that require high accuracy such as drills, reamers, ball mills, end mills, diamond reamers and grinding tools," said a company spokesperson. They are a suitable toolholder for high precision machining in automotive, aerospace, medical and die & mold.

HDC straight shank super slim holders can be clamped into other base holders to extend overall reach of the tool assembly and avoid the need for special tools. The slim nose design provides the necessary clearance for use with deep workpiece access, making them a suitable solution for 5-axis tool holding requirements.

"The BIG KAISER HDC toolholders are simple to use: only 1 hex key wrench is needed to clamp or loosen the cutting tool, making tool changes fast and easy without special equipment," said the spokesperson. "Every HDC toolholder is guaranteed to .00012 inch TIR at five times diameter." Optional straight collets can also be used to increase the range and versatility of each size.

For more information contact:

BIG KAISER Precision Tooling Inc.

2600 Huntington Blvd.

Hoffman Estates, IL 60192

888-TOOL-PRO / 224-770-2999

bigkaiser@us.bigkaiser.com

www.us.bigkaiser.com
