Double Column Surface Grinding Machine for Large Components

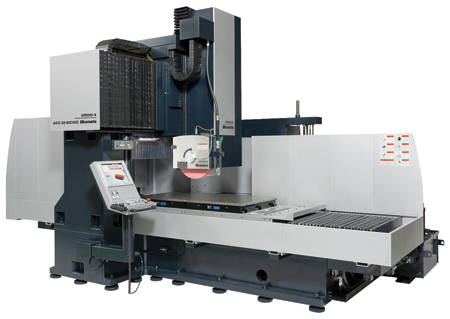

Okamoto's ACC-32-80CHiQ Surface Double Column Grinder is designed for high precision grinding of large components. "It delivers both the high accuracy and high efficiency needed for demanding mold and die base production applications," said an Okamoto spokesperson. "The rigid double column design and construction withstands prolonged heavy-duty grinding conditions. Double vee table way construction provides continued peak accuracy and has a small footprint.

The ACC-32-80CHiQ is engineered for a high degree of flatness across the entire workpiece surface. An exclusive "Reform" mechanism automatically adjusts for crossrail slide wear without CNC compensation. A shift-plunge grinding cycle is designed for efficient stock removal and the grinder's multi-level grinding capability enhances grinding flexibility. "The standard powerful 30 HP spindle motor and 20 inch diameter concave grinding wheel easily handle tough grinding requirements," said the spokesperson.

The ACC-32-80CHiQ's table size (W x L) is 32" x 80". Maximum pass width is 40". Maximum distance under standard wheel is 23.5". Table load capacity including chuck is 5,512 lbs. Machine weight is 34,200 lbs. Larger capacity models are available.

Exclusive Okamoto iQ Software simplifies data input. All data input can be completed using only two data screens.

Some of the many standard features include a grinding wheel adaptor, hydraulic overhead wheel dresser with dress compensation, dresser stand with diamond tool, automatic oil temperature regulator, spindle speed controller and more. Available options include coolant systems, electro-magnetic chucks, 24" grinding wheel, dynamic balancing apparatus and more.

To schedule a live demonstration of the ACC-32-80CHiQ contact Victor Truelsen, Senior Application Engineer, at 847-235-3200 Ext. 621.

For more information contact:

Okamoto Corporation

370 Corporate Woods Parkway

Vernon Hills, IL 60061

847-235-3500

www.okamotocorp.com

IMTS 2018 Level 3, Booth N-236834
