Large Frame Stereolithography Platform

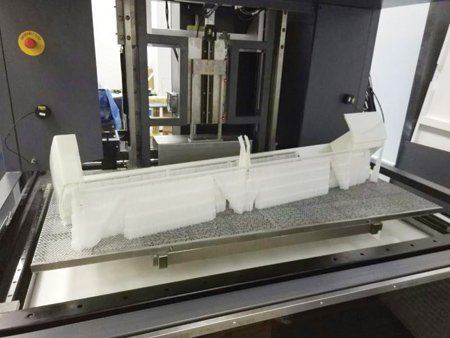

The UnionTech RSPro 1400, with a 1,400 mm x 700 mm x 500 mm (55" x 28" x 20") large frame stereolithography (SL) platform, is targeted at production markets in automotive, consumer goods and foundries for large production parts, prototypes and investment castings. "The same robust and quality design principles used in all other UnionTech SL equipment have been employed to provide the large platform capabilities in a cost-effective fashion for the end user," said a company spokesperson.

Key features include:

  • Dual laser, simultaneous printing without visible weld lines
  • Scanning speed of up to 18 m/s
  • Key components are of these international brands: Panasonic of Japan, Advanced Optowave of U.S., Scanlab of Germany
  • Closed loop control strategy for: platform movement/laser power/material level/temperature/vacuum
  • Automatic calibration set-up and one button start
  • Carbon fiber enhanced recoating blade for non-deformation.

For more information contact:

UnionTech Inc.

100 Illinois St., Suite 200

Saint Charles, IL 60174

630-797-2255

info@uniontech3D.com

www.uniontech3d.com
