Measurement Data Acquisition, Monitoring & Automation

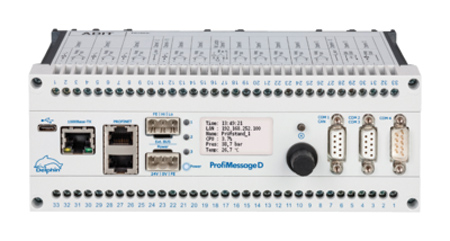

CAS Dataloggers offers the ProfiMessage D Modular Data Acquisition system from Delphin Technology. The ProfiMessage D is targeted at Industry 4.0 applications. It is designed as a modular measurement, monitoring and control system for use in industrial processes and test stands.

For use as part of an upgrade for Industry 4.0 applications, the ProfiMessage D incorporates an OPC UA software interface that allows open data exchange to facilitate integration with other equipment and systems. The ProfiMessage D features several other enhancements over the previous generation of ProfiMessage systems:

  • Built-in display for monitoring and network configuration
  • Two PROFIBUS interfaces (single or redundant)
  • Optional WLAN interface
  • Optional PROFINET interface.

Modular and Scalable

The ProfiMessage D has a modular master/slave design. The main chassis provides two slots which accept a range of I/O modules that offer analog and digital inputs and outputs to meet the requirements of all types of measurement and control applications. The system can be expanded with up to 20 add-on slave modules, each accepting two I/O modules. This allows a wide range of configurations with eight to 660 I/O channels in a single system.

Standalone Monitoring

The ProfiMessage D has a local controller that allows it to operate as a standalone device. This controller also provides many functions such as limits/alarms, calculations, logic and other functions through software channels. This allows the system to be configured to meet the needs of many different types of applications without having to learn a complicated programming language.

ProfiSignal Software

The optional ProfiSignal software package is a Windows based application available in three versions, which provides a full range of capabilities from visualization and data archiving to fully automated test systems with report generation. Optional modules provide additional capabilities such as connecting to SQL databases, vibration analysis or FDA CFR21 Part 11 compliance. The new ProfiSignal Web is a client/server application that allows platform-independent access to remote measurement projects from any standard web browser.

For more information contact:

CAS DataLoggers

8437 Mayfield Rd., Unit 104

Chesterland, OH 44026

800-956-4437 / 440-729-2570

sales@dataloggerinc.com

www.dataloggerinc.com
