Robot Line to Optimize Spot Welding Productivity

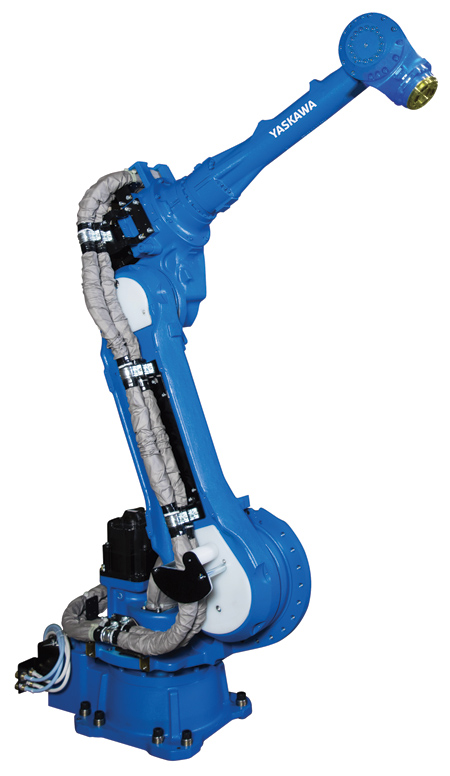

Designed for enhanced spot welding performance, the SP-series robots offer fast axis speeds and acceleration to reduce air-cut time and increase production output. The 6-axis robots are available in five models: SP80, SP100, SP165, SP165-105 and SP210.

Offering improved acceleration/deceleration control for all axes, the SP-series robots enable improved productivity.

While high allowable moment of inertia ratings provide substantial wrist rigidity, a wide wrist motion range eliminates interference and improves application flexibility.

A slim profile design allows SP-series robots to reach into confined spaces, facilitating close proximity placement of robots for high-density layouts. An integrated spot harness improves wrist flexibility and reduces downtime for all five robot models as well.

SP-series robots are equipped with servo gun and DC timer technology to optimize productivity and consistent weld quality. Spot monitoring and waveform graphing help troubleshoot welding conditions, and controller connectivity provides simple wiring to spot timers and robot pendant weld programming for Medar and Nadex brand timers.

"Installation is quick and efficient," said a company spokesperson. "A single cable is all that is needed to connect the manipulator to the controller, resulting in easy set-up and reduced expenses for maintenance and spare parts inventory." Equipped with an IP67-rated wrist and an IP54 body standard, each robot can be floor-mounted.

Designed for large part processing, the extended reach SP165-105 can eliminate the need for a linear track, reducing system cost and simplifying programming. Also, the SP165, SP165-105 and SP210 models do not include a counterbalance, reducing the mass of the robot arm and enabling higher acceleration, deceleration and speed.

"SP-series robots are controlled by Yaskawa's high-performance YRC1000 controller that is built to a global standard and does not require a transformer for input voltages ranging from 380VAC to 480VAC," said the spokesperson. The YRC1000 is highly compact (598 W x 490 H x 427 D mm), resulting in reduced space requirements.

For more information contact:

Yaskawa America, Inc.

Motoman Robotics Division

100 Automation Way

Miamisburg, OH 45342

937-847-6200

www.motoman.com
