Pallet Systems Reduce Set-Up, Increase Productivity



Jergens Quick Loc pallet systems offer repeatability and high clamping forces for horizontal, vertical and rotary operations

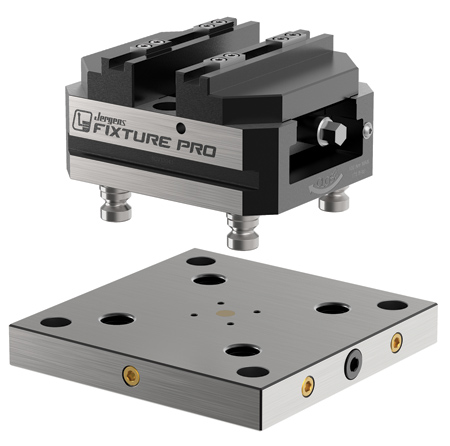

Jergens Inc. has announced its Quick Loc pallet systems for fixturing solutions on horizontal, vertical and 5-axis operations. These low-profile adapters and pallets ensure repeatability of 0.0003" for small tooling platforms and provide clamping forces of nearly 14,000 lbs. Jergens Quick Loc is manufactured from case-hardened steel for high rigidity and features a single drive screw for fast operation and reduced set-up/changeover time for both fixtures and workpieces. The complete range of receivers, risers, pallets and cubes can be configured for almost any application.

Receivers are square, rectangle and round in either 52 mm and 96 mm patterns. They are available with or without mounting holes to allow users to add their own custom mounting configuration. They are also compatible with a variety of other industry-standard pallet systems. Risers permit greater machining (part) access. Cubes and twin bases function like small columns holding multiple fixture set-ups.

For more information contact:

Jergens, Inc.

15700 S. Waterloo Rd.

Cleveland, OH 44110-3898

877-486-1454

info@jergensinc.com

www.jergensinc.com
