Complete Complex Parts in a Single Set-Up

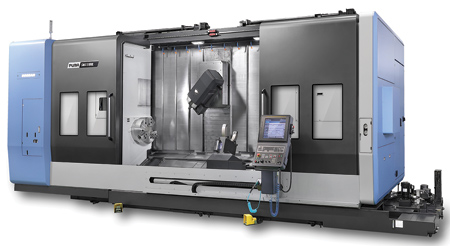

Doosan Machine Tools has introduced the PUMA SMX5100L, the latest addition to the company's twin-spindle, multi-tasking turn-mill centers. The PUMA SMX Series is specifically designed to complete complex parts in a single set-up, and this new model joins the PUMA SMX2600ST (10" chuck) and PUMA SMX3100ST (12" chuck) models in the lineup.

The PUMA SMX5100L is the largest machine in the series, with a maximum turning diameter of 32.7" and maximum turn length of 120.1". Chuck sizes of 15", 18" and 21" are available for the standard main turning spindle, which features a 49.6 HP built-in motor that spins at 2,400 RPM. Also available is an optional gear box spindle that rotates at 1,500 RPM and outputs 4,198 Nm (3,096 ft-lbs.) of torque for heavy duty applications.

The B-axis milling head features a Capto C8, powered by a 49.6 HP motor that rotates at 10,000 RPM. The roller gear cam mechanism that drives the B-axis is backlash-free and highly rigid, outputting B-axis torque of 2,700 Nm (1,991 ft-lbs.).

"With its built-in size and strength, the PUMA SMX5100L is ideal for aerospace applications such as landing gear components as well as housings for large shafts like those found in the agriculture or oil field industries," said Jim Shiner, Director of Sales and Marketing at Doosan Machine Tools America.

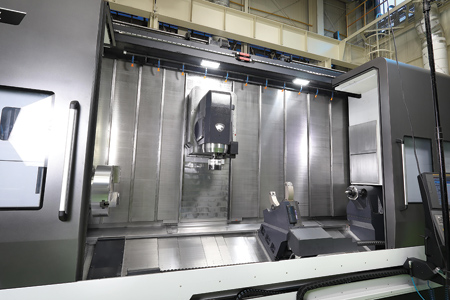

All PUMA SMX models have rigid machine construction. Minimized thermal deformation is achieved via strategically placed sensors throughout the machine, which offer real-time measurement and adjustment of the axes. For added stability and speed, the Z-axis, in which the carriage moves, is supported by three rows of cross roller linear guideways.

Along with the largest machining space among the same-class machines, the PUMA SMX line comes standard with ergonomic features that enhance operator convenience and efficient maintenance. FANUC 5-axis machining software, which offers 600 blocks of look-ahead and optimized servo acceleration/deceleration, is now built into the SMX Series control.
