Five-Axis Simultaneous Machining

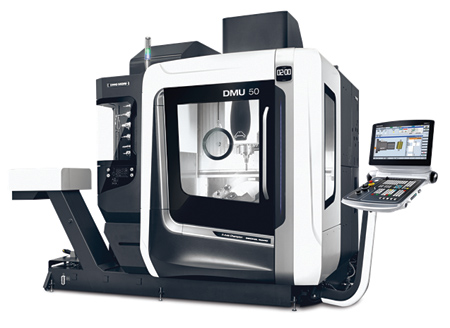

The compact DMU 50 3rd generation is designed to set new standards in 5-axis to 5-axis simultaneous machining. It features an extended swivel range, more powerful spindle and innovative cooling concept. Its areas of application range from training, to general mechanical engineering, fixture construction and on to include applications in demanding branches such as the aerospace, medical and automotive industries.

While redeveloping the DMU 50 3rd Generation, DMG MORI integrated the modern appearance of the design with user-friendly operation. The large work area door, for example, with a width of 34.5" provides unrestricted access from the front, even in combination with automation solutions. The table also has an ergonomic loading height of 31.5". The optimum accessibility of the DMU 50 3rd Generation even encompasses maintenance components such as the control cabinet, fluid box, oil mist separator, heat exchanger and cooling unit.

Work travels of 26 x 25 x 19" and workpiece weights of up to 660 lbs. mean the DMU 50 3rd generation covers a wide range of components. Its new NC swivel-rotary table with an enlarged swivel range of -35°/+110° boosts this versatility. A rapid traverse of 42 m/min. and 30 RPM in the swivel-rotary axis ensure the dynamics for 5-axis to 5-axis simultaneous machining. In addition to the 15,000 RPM speedMASTER motor spindle, the user can also choose between motor spindles with up to a 20,000 RPM. The MASTER motor spindle series is designed to provide high reliability and a long lifecycle.

Also available as an option is an expanded tool magazine with up to 120 pockets. There are 30 tool pockets in the standard version.

The DMU 50 3rd generation achieves a unique degree of precision of less than 6 µ due to its one-piece machine bed and innovative cooling of the guides, drives and table bearings. Directly driven ball screws and direct path measuring systems in all 5-axes contribute to the machine's high degree of precision. The DMU 50 can be expanded with coolant tanks and tool measurement as an option.

A 21.5" ERGOline with CELOS and Siemens 840D solution line as well as a 19" ERGOline with HEIDENHAIN TNC 640 are available as modern control options. DMG MORI also has diverse automation solutions for the DMU 50, such as workpiece or pallet handling systems, to meet challenging applications in aerospace, medical, automotive and energy branches.
