Plasma Bevelling System Increases Productivity, Reliability and Safety



ESAB's DMX Beveller uses direct drive technology to provide reliable, safe and easy-to-use plasma beveling.

ESAB Welding & Cutting Products offers the DMX automated plasma beveller, a next-generation beveling system delivering enhanced performance improvement through a simple, compact design. The beveller is engineered to provide high reliability, enhanced safety and ease-of-use. It cuts the full range of weld preparations, including V, Y, X and K bevels, with cut angles up to 45° on materials up to 50 mm.

"The DMX beveller is complemented by ESAB's SmartBevel Technology, for easier programming and accurate bevel cutting with minimal operator intervention," said a company spokesperson. SmartBevel includes beveling data and geometric compensations necessary to cut V, X, Y and K bevels on mild steel from 6 to 50 mm thick. "Unlike competitive systems, SmartBevel integrates all bevel compensations into the CNC, so bevel programming is simplified, and any fine tuning of the cut is done quickly and easily at the machine," said the spokesperson.

The DMX Difference

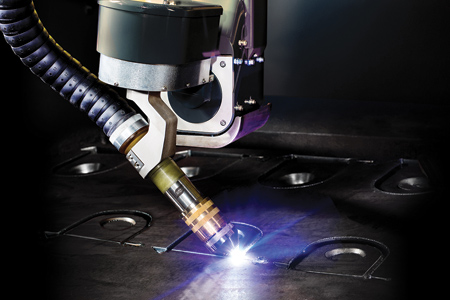

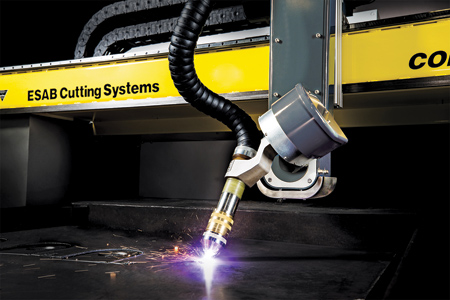

ESAB uses a new approach to providing 5-axis motion, utilizing direct drive motors to radically reduce complexity, eliminate the need for breakaway crash protection and deliver responsive, accurate positioning. The direct drive design eliminates gearboxes, belts, pulleys, limit switches and exposed cables. The resulting "compliant motion" lets the DMX Beveller absorb and detect a torch crash without any added components, as well as automatically reset after a collision without the operator touching the torch or climbing on the cutting table to do so. Faster resets result in higher productivity and eliminate dangerous operator tasks from the beveling process.

The reduction in complexity afforded by direct drive technology enhances both performance and reliability, and enables a compact design. According to Steve Zlotnicki, Global Product Manager, ESAB Cutting Systems, "Direct drive motor technology provides extremely accurate positioning with zero backlash, and it handles fast direction changes. The design is so simple and robust that there is almost nothing that can go wrong."

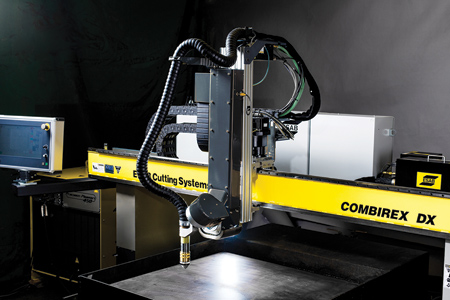

Reducing the size and weight of the bevel head has additional advantages. "The DMX beveller is significantly smaller and lighter than traditional plasma bevel heads, so it can be mounted on smaller gantries, making quality plasma bevel cutting more affordable and saving valuable floor space," said a company spokesperson. DMX is available on ESAB's Combirex DX and larger gantries.

The beveller also uses compound motion to provide beveling in any direction. This type of motion system has no rotation limit and thus eliminates the need to unwind the torch leads or pre-position the head, which further improves cycle time and productivity. It also extends torch life by not twisting the torch leads, but does so without using an expensive torch bearing.

A Multi-Point Collision Protection System provides complete collision protection for the entire bevel head. Multiple sensors are used to protect parts of the bevel head that come in close proximity to the cutting table. The DMX beveller also protects all hoses and cables from the harsh environment of plasma cutting. The head features a complete set of covers protecting all components, plus a fully enclosed cable chain to protect all hoses and cables. A robotic-style torch lead sheath protects the torch leads as well.
