Hurco Introduces the VMXDi Series



Hurco has taken the workhorse VMXi Series of performance CNC machines and launched its newest iteration that features a direct drive spindle. The new VMXDi Series includes the VMX24Di (travels 24" x 20" x 24"), VMX30Di (travels 30" x 20" x 24") and the VMX42Di (travels 42" x 24" x 24").

The VMXi series offers a high level of performance whether customers are running batch production or die/mold work. With the new direct drive spindle, the VMXDi series offers a better surface finish, quieter spindle and less head growth. It also includes a 15,000-RPM spindle, improved chip-to-chip time (2,000 RPM, 12" Z-travel in 4 seconds), faster spindle acceleration and deceleration (0-15,000 RPM in 3.2 seconds, 15,000 - 0 RPM in 2.4 seconds). To download the VMXDi Series brochure visit www.hurco.com/brochures

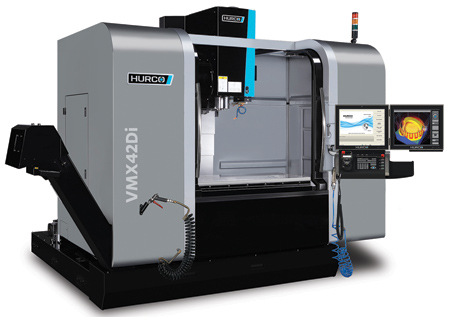

The Hurco VMX42Di is equipped with the Hurco control powered by WinMax software and the patented motion system called UltiMotion (www.hurco.com/ultimotion). The control helps machinists and job shops be more productive and profitable by supporting many programming methods: conversational programming; NC programming; and a Hurco-specific feature called NC/Conversational Merge designed to optimize efficiency even further. "Additionally, the Hurco control's technical specifications lead the industry with 4 GB RAM, 128 GB solid state drive and 10,000 block look ahead," said a company spokesperson. To learn more about the integrated Hurco control visit www.hurco.com/winmax

VMX42Di specifications:

  • Table size: 50" x 24"
  • Table load: 3,000 lbs.
  • XYZ travels: 42" x 24" x 24"
  • XYZ rapids: 1,496 IPM in. XY, 1,260 IPM in. Z
  • Spindle taper: BIG PLUS/CAT 40
  • Spindle RPM: 15,000 (direct drive)
  • Spindle HP: 20
  • Spindle torque: 70.4 ft-lbs. @ 1,500 RPM
  • ATC stations: 30
  • Machine weight: 14,330 lbs.

For more information contact:

Hurco Companies, Inc.

One Technology Way

P.O. Box 68180

Indianapolis, IN 46268

800-634-2416

info@hurco.com

www.hurco.com
