Adjustable Toolholder System



WhizAdjust is an innovative and patented toolholder system that is suitable for turning against the sub spindle. This new and adjustable toolholder system from WhizCut offers quick height adjustment and no loss of stability.

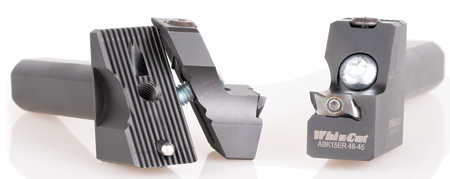

The fine-tune adjustment screw, together with stable clamping, makes it possible to modify center height. Loosen one clamping screw from the WhizAdjust head and shank and the adjustment is done. The shank and adjustable head are positioned together with serrated surfaces in X-axis and the adjustment screw plus a spring in Y. The repeatability, by removing the toolholder and fastening it again, is under 0-005.

Benefits include:

  • Quick release and easy to adjust: only one clamp screw and one adjustment screw needed
  • Rigid toolholder: with slanted and serrated connection surfaces
  • Combine adjustable heads: use the same shank part for multiple adjustable heads: WhizCut, WhizThread and WhizGroove
  • Precise adjustment: +/- 0.02 per line. Fine tuning and repeatability down to 0.005 mm.

For more information contact:

WhizCut America

429 West Grand Avenue

Port Washington, WI 53074

262-284-3830

sales.america@whizcut.com

www.whizcut.com
