Model Added to Electric-Drive Press Brake Series

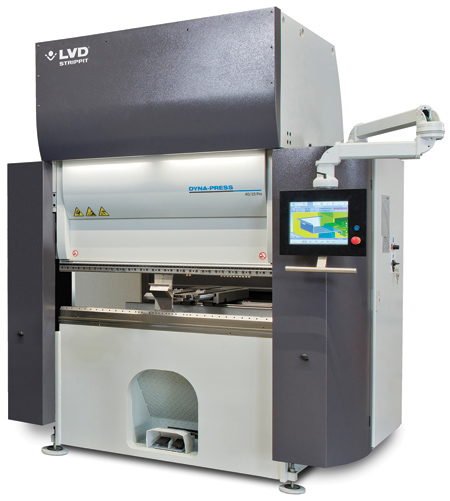

LVD Strippit has added the Dyna-Press 40/15 Pro to its Dyna-Press Series of high-speed electric-drive press brakes. The 40-ton press brake features a 59" (1,500 mm) working length and a precision 5-axis back gauge and can bend at speeds of up to 1" (25 mm) per second to generate more parts per hour at a lower cost per part. Dyna-Press 40/15 Pro can be combined with an industrial robot to create a compact, high-speed robotized bending cell (Dyna-Cell) for automated bending operations.

The Dyna-Press electric ram offers a smooth transition from approach to working speed and minimizes power consumption through the use of an optimal power to inertia motor ratio. The coupling between the ram and the servomotors is made using two heavy-duty ball screws to distribute force and tonnage evenly across the working length. "As a result, the press brake provides fast, energy-efficient operation across a range of bending jobs," said a company spokesperson.

The Dyna-Press 40/15 Pro is equipped with a 5-axis back gauge designed to provide consistent and repeatable accuracy.

The press brake uses vertical removal tooling style for simple and quick tooling changeover, even of heavier tools.

"LVD ensures a comfortable and safety-conscious environment for the operator," said the spokesperson. Like other Dyna-Press models, the newest Dyna-Press can be operated in a seated or standing position. The IRIS Lazer Safe guarding system also provides an added measure of security.

Dyna-Press 40/15 Pro is easy to operate with minimal training. The 15" Touch-B touchscreen control features an intuitive graphical display and offers additional functionality by enabling the operator to create and simulate 3D designs at the control. The controller is compatible with LVD's CAM software, CADMAN-B.

Dyna-Press 40/15 Pro features a 15.8" (400 mm) opening and 7.9" (200 mm) stroke. A number of machine options are available, including front supports, hydraulic clamping on table and ram, robot interface and contact fingers.

For more information contact:

LVD Strippit Inc.

12975 Clarence Center Rd.

Akron, NY 14001

800-828-1527 / 716-542-4511
