Michael Wagstaff, CEO of Wagstaff Northern Kentucky Operations, and James Kuntz, Wagstaff's Hebron, KY, Plant Manager

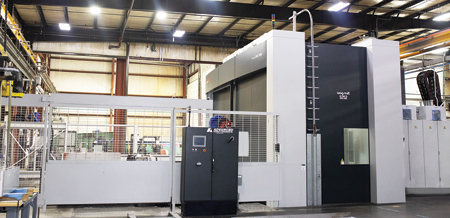

The Starrag machine can process complex workpieces with edges up to 118" (3,000 mm) in length and weighing as much as 17,637 lbs. (8,000 kg).
"We have a customer who needs his support block to be manufactured from blanks made of 7000-series alloys. The Heckert HEC 1800 is completely unfazed by this high-strength aluminum, meaning we can meet our customer's requirements efficiently and effectively," said Kuntz.

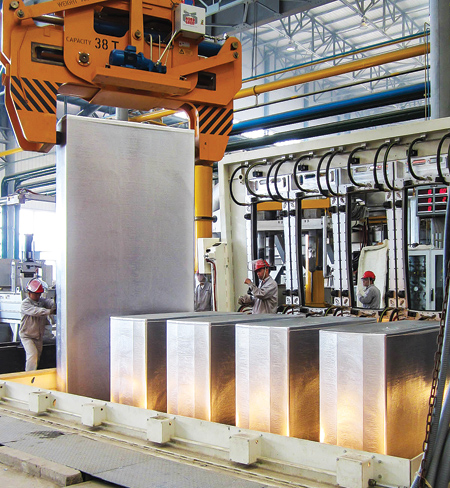

Ingots produced with Wagstaff LHC molds yield significant savings in scalping and edge trimming operations.
The Wagstaff Epsilon Ingot Casting System is a specialized technology designed to cast strong alloys for aerospace, military and commercial applications.
Wagstaff, Inc. has been providing solutions for the aluminum production industry for 75 years. Although the company is a veteran presence in aluminum casting, they are constantly innovating new continuous casting technologies that enable bars with various cross-sections to be produced with increased speed and uniformity.
James Kuntz, Wagstaff's Hebron, KY, Plant Manager, wanted to locate a new CNC machining center to streamline the process of machining support blocks. The blocks are key components that guide their respective continuous casting bar during the casting process. "We looked at lots of machines, but we could not find one capable of handling the wide range of parts for our systems," he said.
Kuntz contacted a colleague, who directed him towards Starrag machines. "The Heckert HEC 1800 was the only machine to offer a sufficiently large working area for us to produce our parts," said Kuntz. "Despite all our research, we did not find another machine that even comes close to offering what the Heckert HEC 1800 does."
Wagstaff continuous casting systems can simultaneously produce one to 160 round-bar blanks with a diameter between 4.33" (110 mm) and 48.54" (1,223 mm) in each pass. The rectangular bars can be cast in many sizes and diameters, reaching over seven meters in length and weighing over 40 tons. The Starrag machine can easily process complex workpieces with edges up to 118" (3,000 mm) in length and weighing as much as 17,637 lb. (8,000 kg).
In response to these machine engineering requirements, the Heckert HEC 1800 horizontal machining center (HMC) has been designed in a flexible and modular way to ensure optimal results for many sizes, weights and alloys during machining.
Kuntz said that integrating the Heckert HEC 1800 into Wagstaff's production facility has significantly reduced the time it takes to produce customer-specific support blocks. "The machine saves time and can work without supervision. What is more, the workpieces are ready for assembly after machining without the need for further processing. We are particularly pleased with the machine's reliability, which makes it extremely efficient. The Heckert HEC 1800 has been operating at over 95% capacity for several months, so it is almost working continuously."
Michael Wagstaff, CEO of Wagstaff Northern Kentucky Operations, said, "We usually produce batches of four to six aluminum support blocks for our customers. These support blocks need clamping in sizes up to 30 in. by 90 in. by 15 in. (762 mm x 2,286 mm x 381 mm)-that is our typical workpiece. It used to take 10 hours to produce workpieces like these, but we wanted to reduce that to four and a half."
Kuntz justifies the objective with recorded progress from Wagstaff's production environment: "We are now at five hours and have fewer and fewer manual tests to perform during the process. We are getting better and better, and are confident that we will have reduced our production time by 55% as planned very soon."
In reference to metal type, hundreds of different alloys have already been processed on Wagstaff casting systems. Many new and existing alloys for general and aerospace applications are continuously being tested for future use in Wagstaff's research and development lab.
"We place very particular demands on our machining centers, which explains why it took so long for us to find the right one. But the Heckert HEC 1800 already met so many of our machining needs. We only had to make one small optional adjustment to cover our entire portfolio of applications," said Kuntz.
Wagstaff had originally planned to use 5-axis machining, but the Heckert's working area made it possible for workpieces to be extensively machined with one less axis and without having to be reclamped. As a result, Wagstaff improved machining quality and shortened production set-up times.
The Heckert HEC 1800 offers a wide range of work spindle options, process-optimized solutions for tool and workpiece handling, and innovative process control and monitoring systems.

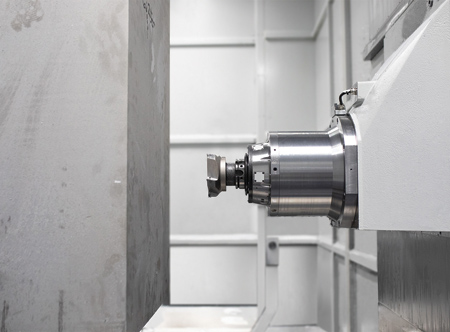

Wagstaff noted, "We chose a 15,000 RPM motor spindle and torque values that suited our applications. This spindle was the right choice for us to deliver the necessary torque when deep-hole drilling and contouring the aluminum blanks."
Kuntz added, "We have a customer who needs his support block to be manufactured from blanks made of 7000-series alloys. The Heckert HEC 1800 is completely unfazed by this high-strength aluminum, meaning we can meet our customer's requirements efficiently and effectively."
Ultimately, however, it was not just the machine's selling points that won over Wagstaff. "We were drawn to Starrag because of its global team of support staff who wholeheartedly stand by their products. The company is more than a supplier to us-we consider Starrag a partner. That is very important to us," said Kuntz.
"Many machinery suppliers offer expensive custom solutions-but with the Heckert HEC 1800 and simple optional adjustments, Starrag gave us a machine that enables us to create complex customer-specific solutions for a wide range of applications," said Wagstaff.
