Flexible Automation Solution for Variable-Mix Production



With its small footprint of less than 1.4 sq. m, the MATRIS Light requires about as much space as an operator.

Flexible and collaborative automation for workpieces weighing up to 5 kg

Direct teaching without robot knowledge and simple connection via ethernet

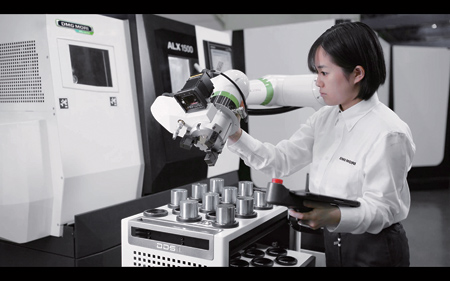

Production with variable mix and volume requires highly flexible automation solutions. With MATRIS Light, DMG MORI now presents a space-saving and collaborative automation system for workpieces weighing up to 5 kg, which can be connected to various machine tools in as little as five minutes. The robot supports the operator and enables autonomous loading and unloading of up to 108 workpieces.

Compatible models include NTX and NZX series turn-mill centers, turning centers of the NLX and ALX series, CMX V series vertical machining centers, as well as the i 30 V and the NHX 4000 horizontal machining center. In the 5-axis range, these include the CMX 50 U, the DMU 50 and the DMU 40 eVo.

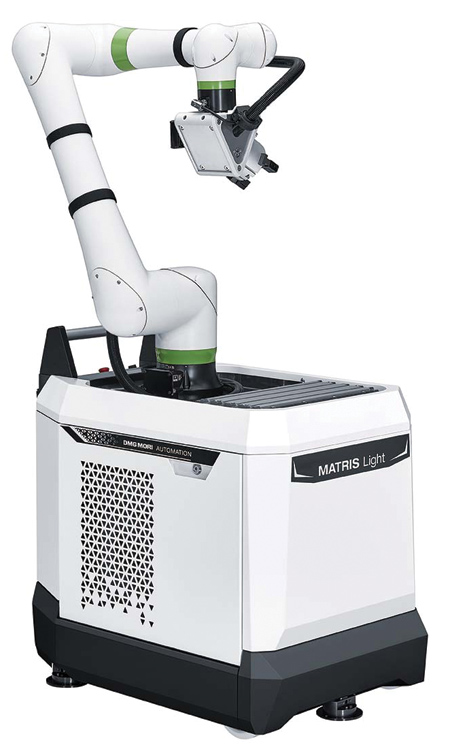

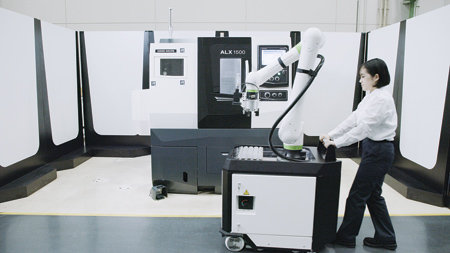

With its small dimensions of 900 mm x 1,550 mm including workpiece storage, the MATRIS Light requires about as much space as an operator. Additional floor space, as with other automation solutions, is therefore not required. Due to its rollers, the collaborative robot can be flexibly installed by one person at the machine tool where it is to support production. Due to plug & play, user friendly HMI and automatic position correction (option), operators without robot knowledge can use the MATRIS Light.

The MATRIS Light offers a transfer weight of 5 kg. In addition, peripheral activities such as blowing off or measuring can be integrated into the automation. To help ensure that working with the MATRIS Light is safe for the operator, the automation solution features scanners that are highly sensitive to immediately stop movement when in contact with humans-no fences needed.
