CMM with Computed Tomography

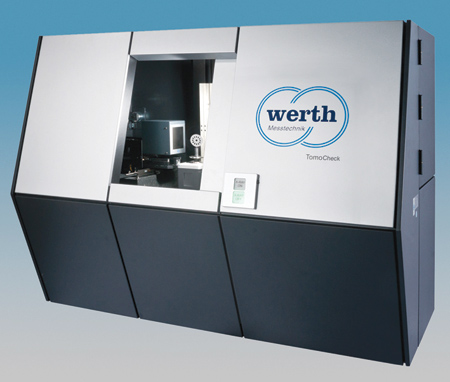

Werth Messtechnik GmbH offers the Werth TomoCheck HA 200. The computed tomography machine features a granite base paired with high-precision mechanics and air bearing technology. The machine can be configured to meet customer needs with Werth multi-sensor technology.

The machine's maximum permissible errors are MPE E1 = (0.5 + L / 500) µm and MPE E = (2.5 + L / 150) µm. A patented software process minimizes the probing deviation of the X-ray sensor. With an X-ray tube for the coordinate measuring technology and a 12 megapixel detector, the machine provides high resolution of approximately 1 micron, even at high radiation power.

WinWerth 3-D measurement software is a comprehensive solution, from data acquisition to final results reporting. Software tools for material analysis, such as void and crack detection, are also available. The main areas of applications are precision parts and micro components made of various materials, such as fuel injection system components for automotive applications.

For more information contact:

Werth, Inc.

8 Custom Dr.

Old Saybrook, CT 06475

860-399-2445

info@werthinc.com

www.werthinc.com
