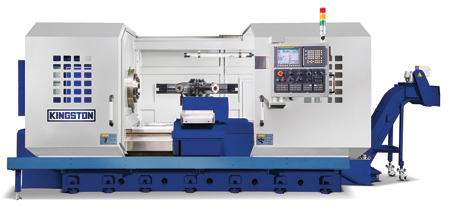

CK Chucker for Large-Diameter Workpieces



"Kingston's CK Chucker model uses its features to combine powerful heavy-duty cuts with high accuracy," said a Kingston spokesperson. The 4-speed headstock and robust spindle construction are built for high turning torque (9,000 Nm at low speeds), while the heavily ribbed one-piece casting and 28" wide two V-way bed provide rigidity when cutting large-diameter workpieces.

The Chucker is suitable for the oil and gas industry, where it can be put on a pipe rack and used to do end-threading on tubing or casing applications.

"The CK Chucker excels in pipe threading applications," said Scott Eddins, President of H & S Machine Tools in New Orleans, LA, "as well as basic turning for large valve bodies."

Darren Peltier, Product Specialist for Champions Machine Tool in Spring, TX, said, "This machine can also serve a variety of markets that require large turning and boring capabilities. Imagine large seal rings for the aerospace industry or valves in a nuclear power plant."

"The CK Chucker's ability to handle the hardest materials, even titanium alloys, makes it an ideal choice in the manufacture of hydraulic cylinders and turbine engines for the marine, aviation and aerospace sectors. With the power and torque available from the spindle as well as the Z-axis thrust available in the design of the machine, this machine is perfect for many markets," Peltier added, "being a great fit anywhere large turning and boring is required."

The CK Chucker is available with a 9.25" bore and 40" swing, and a 14.8" bore version with a 34" swing.

"People forget that the 9-inch spindle version of this machine also happens to have a 40-inch diameter swing, which is almost unheard of in the slant bed world," Peltier said. "And even if you find that slant bed that has that much swing, you also can not turn the O.D. of a 40-inch diameter part for a very long distance because the cross slide always gets in the way."

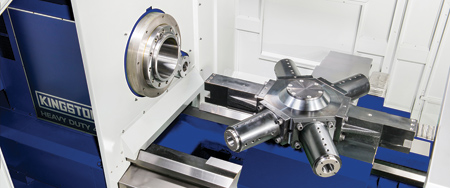

"Kingston designed the CK Chucker to thrive in environments where lighter-duty machines give up," said the spokesperson. "The powerful H6 350 turret (with 3" boring bar holder) sits atop a specially designed carriage with a larger contact area and a beefy box way cross slide with extra guide way for enhanced stability and accuracy. This rigidity, combined with the machine's massive torque and high loading capacity, make the CK Chucker capable of handling the toughest jobs."

For more information contact:

Kingston Machine Tool Mfg, Inc.

5421 Business Drive

Huntington Beach, CA 92649

714-894-1648

sales@kingstonmachine.com

www.kingstonmachine.com/lathes/flat-bed-lathes/chucker

Southwest

TX

Champions Machine Tool Sales

1151 E. Cypresswood

Spring, TX 77373

281-355-8665

support@championscnc.com

www.championscnc.com

Coastal Machinery Sales

29354 McKinnon Rd.

Fulshear, TX 77441

281-346-2210

coastal@coastalmachinetools.com

www.coastalmachinetools.com

Billor McDowell

6025 Commerce Street, #510

Irving, TX 75063

972-792-0166

andy@texasmachines.com

www.texasmachines.com

Thunderbird Machinery Company

619 W. Hillmont

Odessa, TX 79764

432-367-8423

davidboone75@gmail.com

OK

Timco Machine Tool, Inc

1720 North Juniper

Broken Arrow, OK 74012

918-836-3322

ken@timco-mti.com

AR

Mauldin Machine Inc

3024 Discovery Drive

Jacksonville, AR 72076

501-835-5494

sales@mauldinmachine.com

www.mauldinmachine.com

SMF & Machine Tools, Inc.

14824 Rockbridge Rd.

Little Rock, AR 72206

800-643-5839

sales@smfmachinetools.com

www.smfmachinetools.com

LA

H & S Machine Tools LLC

1941 Industrial Blvd

New Orleans, LA 70115

504-347-5707

scott.eddins@hsmachinetools.com

www.hsmachinery.com

NM

Industrial Production Service Inc.

703 W. Hillmont

Hobbs, NM 88244

855-558-9856

ipsmts@yahoo.com

www.ipsincmachinetoolssalesandservice.com

Southeast

AL

Turner Supply

401 North 33rd St.

Birmingham, AL 35222

800-239-5250

sales@turnersupply.com

GA

Allison Machine Tools, LLC

5250 Country Lake Ct., SW

Lilburn, GA 30047

770-634-8634

allisonmachinery@comcast.net

MS, TN, AL

Cardinal Machinery

7535 Appling Center Dr.

Memphis, TN 38133

901-377-3107

info@cardinalmachinery.com

www.cardinalmachinery.com

NC

Dominion Air & Machinery Co. - Greensboro

4201 Summit Ave

Greensboro, NC 27405

336-375-1115

hardin@dominionair.com

www.dominionair.com

SC

Machine Tools Inc.

18 Sheridan Place

Greer, SC 29650

864-288-4255

machinetools@mindspring.com

www.machinetoolsinc.com

VA

Woody's Machine Tool

173 Etzler Rd.

Troutville, VA 24175

540-966-3125

woodysmach@aol.com

www.woodysmachine.com

Dominion Air & Machinery Co. - Roanoke

1401 Coulter Drive, NW

Roanoke, VA 24012

800-476-2882

info@dominionair.com

www.dominionair.com

Dominion Air & Machinery Co. - Richmond

2404 Charles City Road

Henrico, VA 23231

804-222-4427

adkins@dominionair.com

www.dominionair.com

Northeast

NY

A.W. Miller Technical Sales

7661 Seneca St.

East Aurora, NY 14052

716-652-8282

emueller@awmiller.com

www.awmiller.com

PA

Action Machinery

2320 Highland Ave.

Bethlehem, PA 18020

610-691-6677

tkhoury@actionmachinery.com

www.actionmachinery.com

A.W. Miller Technical Sales

3 Tara Drive

Harmony, PA 16037

724-453-1690

rweis@awmiller.com

www.awmiller.com

Exact Machine Service, Inc.

144 Roosevelt Ave.

York, PA 17401

717-848-2121

sales@myexact.com

www.myexact.com

WV

Blue Ridge Machinery & Tools

2905 Putnam Ave.

Hurricane, WV 25526

304-562-3538

blueridgemachine@worldnet.att.net

www.blueridgemachinery.com

Midwest

IL

Quality Machinery Systems

27475 Ferry Road

Warrenville, IL 60555

630-717-2860

david@qualitymachinerysystems.com

www.qualitymachinerysystems.com

IA

Smith Machinery

1287 W Ave.

Ames, IA 50014

515-233-6330

smc@smithmachinery.com

www.smithmachinery.com

KS

SMT Company

16055 S. Apache Street

Olathe, KS 66062

913-764-2788

steve@smtco.biz

www.smtco.biz

KY

Kentech Machinery

5801 Fern Valley Rd.

Louisville, KY 40228

502-966-8242

cam@kentechmachinery.com

www.kentechmachinery.com

MI

Spartan Machinery, Inc.

24100 Marmon Ave.

Warren, MI 48089

586-758-1700

sales@spartanmachineryinc.com

www.spartanmachineryinc.com

MO

Municipal Machinery

2465 Rock Island Blvd.

Maryland Heights, MO 63043

314-994-9905

info@municipaltool.com

www.municipaltool.com

OH

Numerequip, Inc.

4810 Briar Road

Cleveland, OH 44135

216-264-0400

dangibbons@numerequip.com

www.numerequip.com

Worldwide Machine Tool, LLC

9000 Cotter St.

Lewis Center, OH 43035

614-255-9000

bill@worldwidemachinetool.com

www.worldwidemachinetool.com

WI

Ted Grob Sales Inc.

1990 Wisconsin Ave.

Grafton, WI 53024

262-377-8220

sales@tedgrobsales.com

www.tedgrobsales.com

WEST

CA

Emrick Machinery Sales

2626 East Jensen Ave.

Fresno, CA 93706

800-288-1202

info@emrickmachinery.com

www.emrickmachinery.com

The Tool Company, Inc.

13239 Rosecrans Ave.

Santa Fe Springs, CA 90670

562-623-9089

sales@machinetools4sale.com

www.machinetools4sale.com

CO

Foothills Machinery Sales

6855 W. 116th Ave.

Broomfield, CO 80020

303-466-3777

sales@foothillsmachinery.com

www.foothillsmachinery.com

UT, WY

Machinery Consultants Inc.

1390 West 200 South

Salt Lake City, UT 84104

801-531-9500

billw@machineryconsultants.com

www.machineryconsultants.com
