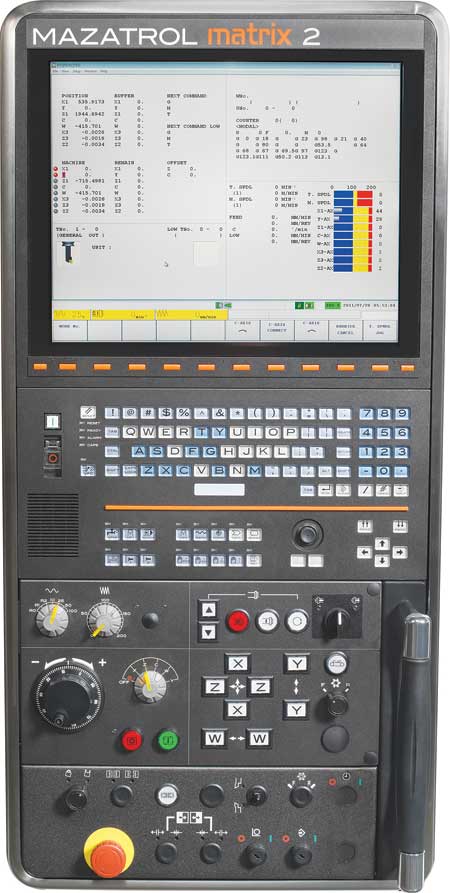

Mazak Corporation developed its MAZATROL MATRIX 2 CNC control specifically for high-performance 5-axis machining. It is intended to provide improvements in processing speed, cornering accuracy, part surface finishes and cycle times.
"The MATRIX 2 gets its faster processing speed from NC and PC hardware enhancements that make the control 1.5 times faster than previous CNCs," said a company spokesperson. "As a result, small-increments processing speeds for 5-axis machining, for example, are as much as two times faster to reduce machining cycle times."
With Mazak's 5-Axis Machining Package, the MATRIX 2 includes the 5-Axis Spline Interpolation option designed to further reduce cycle times by optimizing corner decelerations. According to the company, it also creates seamless tool paths from long block-by-block programs in 5-axis machining and makes for more smoothly controlled tool vectors, all of which allows the control to generate improved part surface finishes.
To further improve 5-axis machining accuracy, there are two key compensation functions: Volumetric Compensation and Kinematics Deviation Compensation. The Volumetric Compensation function compensates volumetric axis position errors within the full stroke area of the machine tool. These position errors in machine axis movements are mapped using a laser tracer unit and sent via data I/O directly to the control for making the necessary adjustments.
Kinematics Deviation Compensation is intended to improve 5-axis machining accuracy, specifically for machine models with tilt/rotary tables. The function automatically calculates axial offsets from an angle error of the rotary axis and the position of cutting tool tips.
For high-level automation systems, an extended Ethernet card can be used to connect the MATRIX 2 to field networks. A universal interface is also provided for integrating to external measuring equipment, which enables continuous multiple-axis high-speed measuring.
The MATRIX 2 offers both EIA/ISO and conversational programming designed for versatility and easy programming. The control features a 19" customized position display that provides room for more information. Users can combine frequently used displays into one page for setup and for auto mode to operate machines with the least amount of page changes. Also, several combinations can be registered and called up from menu keys.
