Fiberoptic Light System for Borescopes, Microscopes

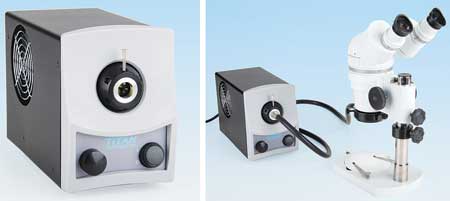

Titan Tool Supply, Inc. offers its LuxPro LED fiberoptic illuminator designed to provide high output light for borescopes and microscopes. Designed to exceed the brightness of a 150-watt halogen bulb while reducing energy consumption, the LED has a bulb life of 25,000 hours minimum, though 50,000 hours is typical, according to Titan Tool.

"Priced at $625.00, the new LuxPro LED fiberoptic illuminator offers payback in less than two years compared to quartz halogen EKE fiberoptic illuminators," said a Titan Tool spokesperson. "Halogen lamps need to be changed every 200 hours. Operating 2,000 hours per year, 10 replacement halogen lamps ($250.00 total @ $25.00 each) are needed, and at 15 minutes per lamp change, 2-1/2 hours spent per year replacing lamps. Based on $20.00/hour for a maintenance worker to replace a lamp, plus $20.00/hour that the operator is idle, downtime costs can be $100.00 annually. In addition the new LuxPro uses a maximum of 80 watts while a standard quartz halogen EKE lamp will consume 150 watts. According to average national electricity rates ($0.135/kwh), LuxPro will reduce energy costs approximately $19.00 per year (over 2,000 hours)."

The LuxPro illuminator features linear light intensity control with continuous dimming and accepts a range of light guides with quick change adapters. It is designed to provide consistent color temperature (cool white 4,500 K) and is equipped with a standard 0.625" light guide fitting (nosepiece). Titan Tool can supply an adapter for fiberoptic cable diameters from 0.187" to 1.0" (including Fostec 0.718" and ACMI), so customers can use their current fiberoptic guides and ring lights.

The LuxPro uses metal core PCBs and precision-engineered cooling provides quiet operation. The lightweight (7 lbs/3.2 kg) unit has rugged housing and a footprint of 6" H x 4.75" W x 9" D (15.2 cm x 12.1 cm x 22.9 cm) suitable for mounting and stacking in constrained areas. A universal power source connector enables worldwide operation from 96-264 VAC, 50-60 Hz.

Manufactured and tested in the USA, the new Titan Tool LuxPro LED fiberoptic illuminator features a one-year warranty and is part of a complete range of LED, fluorescent and incandescent illuminators offered by the company.

For more information contact:

Frank Menza, President

Titan Tool Supply, Inc.

68 Comet Avenue

Buffalo, NY 14216

716-873-9907

info@titantoolsupply.com

www.titantoolsupply.com
