Automated Manufacturing Technology



Ganesh offers a variety of CNC machine tools and automated manufacturing technology, from 11-axis CNC turning centers that combine multiple machining operations in a single set-up, to automated systems that incorporate separate turning and milling platforms to help increase production throughput and product quality while decreasing cost.

The 11-axis CYCLONE-70 3TMY CNC machines feature two Y-axis tool turrets in the upper position and a 2-axis tool turret on the lower slide-way. The 2-3/4" bar diameter machine features three 16-tool turrets for a total of 48 tool positions. This allows up to four tools in the cut at the same time while simultaneously machining the front and back of the part for reduced cycle times. When coupled with an automatic bar loader, these machines can run lights-out in a full automation mode. Gantry loaders can be fully interfaced with these machines to run larger diameter work simultaneously in the 8" lathe chucks.

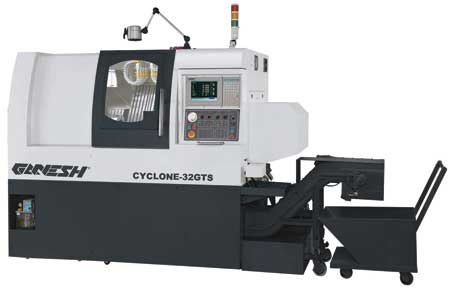

The CYCLONE-32/42 GTS twin-opposed spindle slant-bed CNC lathe features dual-parallel gang tool slides. It is available with up to 1-5/8" bar capacity and features simultaneous front and backside machining using twin independent gang-tooled cross-slides. The standard C-axis on both spindles provides for full 6-axis capability for simple milling or drilling on both the main and sub spindle, and allows for the accurate transfer of hex, square and extruded shaped bar stock to the sub spindle. Twin 10 HP integral Mitsubishi spindle motors drive the 6,000 RPM dead-length collet spindles for accurate part transfer and complete simultaneous front and backside machining efficiency. Additionally, a 5" hydraulic chuck can be used in conjunction with a gantry loader for larger diameter work.

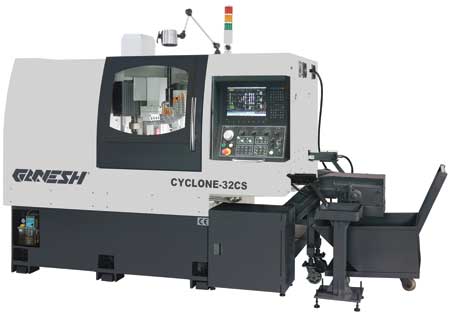

When a Y-axis is necessary, and where more complex milling geometry is required, the 7-axis Ganesh CYCLONE-32 CS provides simultaneous front and backside machining efficiency. The part can be machined complete using the standard 27-tool positions, including 11 ER-20 collet 1/2" capacity driven tool spindles. The 6,000 RPM 10 HP main spindle motor drive provides machining efficiency with the 1-3/8" bar capacity spindle. Both the main and sub spindle use hydraulically actuated dead-length collets for accurate part transfer and simultaneous front and backside machining efficiency.

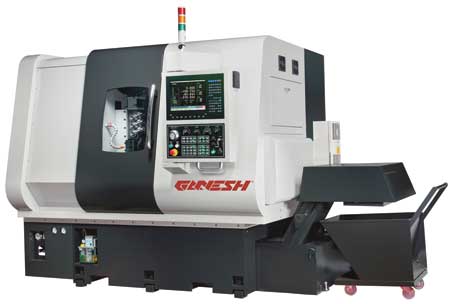

When B-axis is a requirement for working angle features on the part, the 9-axis dual opposed spindle Ganesh CYCLONE-52 BY2 machine provides 12 B-axis tools for angle milling and drilling, and can also perform cross and axial milling on both spindles. Twin 20 HP integral spindle motors drive the 6,000 RPM spindles featuring 2" bar capacity. The Cyclone BY2 provides 36 tool positions with 18 driven tools for simultaneous machining efficiency.

For more information contact:

Ganesh Machinery, Inc.

20869 Plummer St.

Chatsworth, CA 91311

888-542-6374 / 818-349-9166

info@ganeshmachinery.com

www.ganeshmachinery.com

Southwest

TX, LA

Andy Plassenthal

Texas Machinery Company

204 Lee St.

Terrell, TX 75160

877-233-8938

sales@texasmachines.com

www.texasmachines.com

NM

Steve Beck

Automatic & Machinery Co., Inc.

150 Martin Street

Longmont, CO 80501

800-543-7666

steve@automatics.com

www.automatics.com

Southeast

FL

Bill Koster

Koster Machinery

1006 Charlotte Ave.

West Palm Beach, FL 33401

561-627-6968

sales@kostermachinery.com

www.kostermachinery.com

AL

Sid Rostami

Metal Worx Machinery

939 Stonecrest Drive

Birmingham, AL 35242

205-408-0195

info@metalworxmachinery.com

www.metalworxmachinery.com

SC, NC, VA

Ed Warg

Crotts & Saunders Engineering

4000 Silas Creek Parkway

Winston Salem, NC 27104

336-765-7250

sales@crottsandsaunders.com

www.crottsandsaunders.com

Northeast

CT, MA, ME, NH, RI, VT

Joe Klier

Brooks Associates

300 Longwater Dr.

Norwell, MA 02061

781-871-3400

sales@brooksmachinery.com

www.brooksmachinery.com

PA, NY, NJ

Brian Ferguson

Synergy Machine Tools

P.O. Box 460

Blue Bell, PA 19422

215-205-0898

info@synergymachinetools.com

www.synergymachinetools.com

Midwest

IL

Mike Plachetka

Machine Tool Diagnostics

1204 Baseline Rd.

Montgomery, IL 60538

630-229-6220

mike@machinetdinc.com

www.machinetdinc.com

MN, IA

Dave Thompson

Machine Tool Supply

3150 Mike Collins Dr.

Eagan, MN 55121

651-452-4400

sales@machtool.com

www.machtool.com

MI

John Minar

Methods & Equipments

31731 Glendale Ave.

Livonia, MI 48150

734-293-0660

j.minar@methods-equipment.com

www.methods-equipment.com

AR, MO

Richard Burst

Burst Machinery

16 N. Gore Ave.

St. Louis, MO 63119

314-961-0090

rburst@burstmachinery.com

www.burstmachinery.com

N. OH

Don McFadden

The Motch & Eichele Company LLC

297 Ascot Pkwy.

Cuyahoga Falls, OH 44223

800-833-9730

dmcfadden@ganeshtc.com

www.mande.com

S. OH

Greg Knox

Knox Machinery

375 Industrial Dr.

Franklin, OH 45005

937-743-2641

info@knoxmachinery.com

www.knoxmachinery.com

WI

Kit Nelson

Preferred Solutions

2814 NE 95th Ave.

Ankeny, IA 50021

262-227-2997

kit@preferredsolutions.co

www.preferredsolutions.co

West

AZ

Tom Camp

TSM Machinery

3125 N. 33rd Ave.

Phoenix, AZ 85017

602-233-3757

tsmmachine@hotmail.com

www.tsmmachine.com

N. CA

Bob Shenk

Shenk Machinery

1735 Stanford Ave.

Menlo Park, CA 94025

650-766-7264

bob@shenkmachinery.com

www.shenkmachinery.com

CO, WY

Steve Beck

Automatic & Machinery Co., Inc.

150 Martin Street

Longmont, CO 80501

800-543-7666

steve@automatics.com

www.automatics.com

ID, MT

George Cobb

King Machine Inc

443 W Pennwood St.

Meridian, ID 83642

208-345-9600

sales@kingmach.com

www.kingmach.com
