Automation Products Designed to Boost Production



Matsuura Machinery USA offers high-accuracy machining equipment, including multi-pallet and multitasking machine tools for a range of industries. The company's automation capabilities and automatic tool change abilities are designed to simplify the production process, reduce cycle time and provide unmanned machining capabilities.

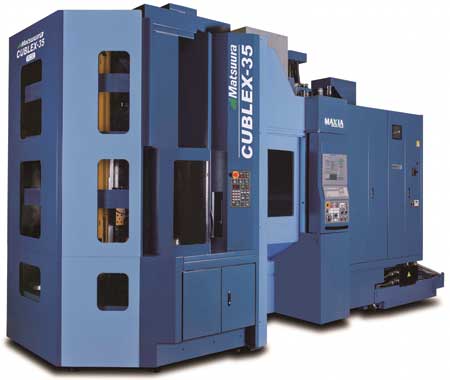

Matsuura's CUBLEX-35 5-axis multitasking machining center features precision milling, turning and grinding on the same platform. The B/C axis rotary table, combined with a pallet changer, enables high production milling and turning with exceptional precision, according to the company.

Matsuura's CUBLEX-35 5-axis multitasking machining center features a standard 12,000 RPM milling spindle, a 3,000 RPM direct drive C-axis motor, a 520 tool matrix magazine ATC and Matsuura's main spindle chop-grinding function. The machine is available with optional 15,000 and 20,000 RPM spindles.

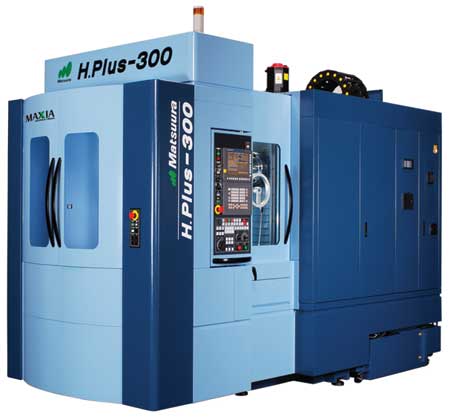

Matsuura's H.Plus-300 horizontal machining center (HMC) with automatic tool changer can be equipped with 520 tools and a PC 15 tower pallet system. "It is a precise, high-speed HMC delivering long periods of reliable, unmanned and efficient production," said a company spokesperson. Offering the ability to machine five sides of the part during production, the Matsuura H.PLUS-300 is designed to handle most modern materials that require high accuracy machining.

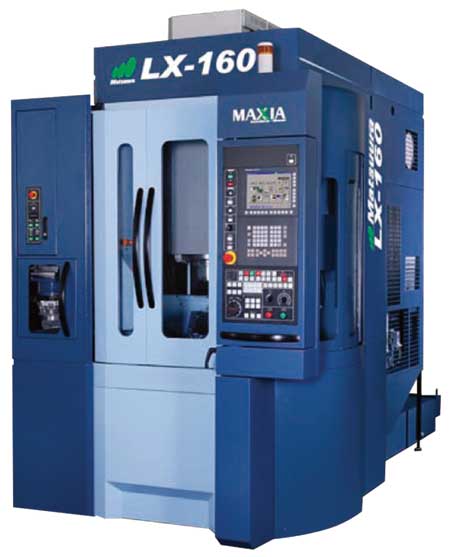

The Matsuura LX-160 High Grade vertical linear motor machine is a 5-axis vertical machine utilizing technology that permits high-speed and high-precision machining. "The Matsuura LX-160's 5-axis design is not a 3-axis machine with a bolt-on 4th and 5th axis, but a purposely designed true 5-axis machine," said the spokesperson. The LX-160 is designed for the high-speed, high-accuracy market, with a focus on small workpiece processing and unmanned operation with the available pallet changer options.

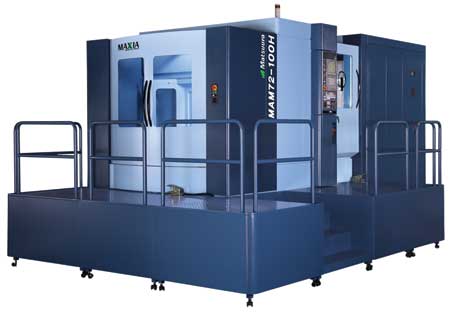

Matsuura's MAM72-100H HMC is the largest 5-axis model in the MAM72 Series. The Matsuura MAM72-100H allows cutting on all five sides of the part in one operation and can achieve process integration and high-accuracy, complex 5-axis machining to meet the need for unmanned operation.

The Matsuura MX-850 5-axis vertical machining center (VMC) was developed in response to market demand for a large capacity, high quality and cost effective single table machining platform. "The MX-850 is compactly built, yet ensures high rigidity and a maximum part weight of over 1,100 lbs.," said the spokesperson.

All Matsuura 5-axis machine tools are equipped with CAMplete Truepath Software. This integrated suite of programs bridges the gap between CAM Systems and the machines. It features G-code editing, optimization, analysis and verification tools.

For more information contact:

Matsuura Machinery USA

325 Randolph Ave., Ste. 100

St. Paul, MN 55102

800-518-4584 / 651-289-9700

info@matsuurausa.com

www.matsuurausa.com
