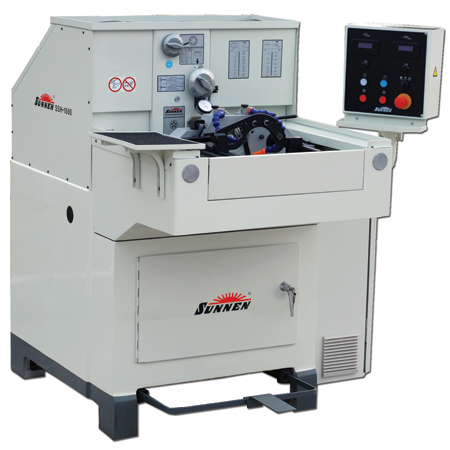

Sunnen's SSH-1680 honing system features zero shutoff designed for automatic cycle control and consistent bore size, finish and geometry with minimal operator attention. Rough-and-finish honing capability is engineered to eliminate preliminary reaming, boring and grinding operations to help lower per-part costs. "The SSH-1680 makes quick work of parts with keyways, splines and blind bores. An adjustable spindle allows the operator to eliminate mandrel runout, making it easy to achieve precision bore geometry. Multiple land and tandem bores are bridged with Sunnen's long stones, maintaining alignment and consistent size without camber or washout," said a company spokesperson.
"This machine is designed for small shops looking for a cost-effective way to streamline processes and increase the consistency of bore sizing operations," said Phil Hanna, Product Manager, Machines/Gages.
The SSH-1680 is designed for fast, clean cuts in a wide variety of materials, and handles part lengths up to 9.84" (250 mm) with bore diameters from 0.118-2.36" (3-60 mm). "Diameters of 1.57 inch (40 mm) and smaller are a particular 'sweet spot' for this machine, when compared to I.D. grinders," added Hanna.
A rigid cast iron machine base provides strength for handling heavy parts and isolates moving components to eliminate vibration problems. The machine's design enables rapid stroking for shorter cycle times. Incrementally adjustable stroke rate (80-310 SPM) and spindle speed (250-2,500 RPM) are designed to deliver fast stock removal rates. The spindle and stroker are both powered by variable frequency drives, eliminating drive belt changes and allowing dial-adjustment of speeds via the swiveling control panel.
The SSH-1680 accepts all standard Sunnen tooling, including K, P20 and P28 mandrels. A universal honing fixture is standard, with a variety of workholding options available to securely fixture odd shapes and thin walled parts without distortion.
All electrical components are housed in an interlocked, side-mounted enclosure.
Standard equipment includes a universal honing fixture, parts tray, spindle runout indicator, side splash guards and detachable 25-gallon (96-litre) coolant cart, which is mounted on casters for easy filling and maintenance.
For more information contact:
Sunnen Products Company
7910 Manchester Rd.
St. Louis, MO 63143
800-325-3670 / 314-781-2100
sales@sunnen.com
www.sunnen.com
