Machining Kits and Bushing Plugs



Jergens fixture plate machining kits and receiver bushing plugs are designed to reduce time in set-up and clean-up for the Ball Lock mounting system.

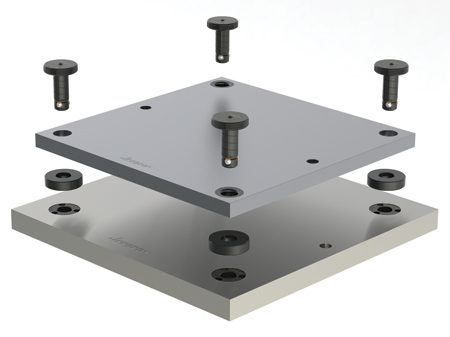

Jergens Inc. offers its fixture plate machining kits and receiver bushing plugs for its line of Ball Lock quick-change mounting systems. The machining kits consist of one fixture plate, four extra-long Ball Lock shanks and four spacers that provide clearance between the fixture plate and subplate below. This open space allows cutting tools to "break through" the fixture plate without damaging the subplate, making it possible to machine fixture plates while mounted to the same subplates that will be used during production.

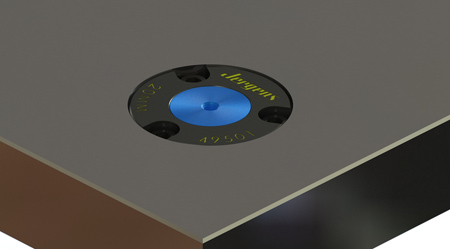

Jergens also offers its simple-to-install plugs that prevent chips and coolant from accumulating inside receiver bushings that are not in use (during certain operations). This saves time by eliminating the need to clean out receiver bushings in between set-ups. "The receiver plugs are blue anodized aluminum, a durable construction for better resistance to hot chips when compared to plastic plugs. The flush mount design does not protrude above subplate surface, making it easy to clean and ensuring no interference in machining," said a company spokesperson. These plugs are available in standard sizes to accommodate different hole openings, and come with an O-ring and tapped hole for easy installation.

For more information contact:

Jergens, Inc.

15700 S. Waterloo Rd.

Cleveland, OH 44110-3898

877-486-1454

info@jergensinc.com

www.jergensinc.com
