Solid Carbide End Mill in Short and Long Versions



"The HAIMER MILL solid carbide end mill is a versatile tool suitable for roughing and finishing, drilling, profiling, ramping and slotting in nearly all materials. Now a short and a long version complement the HAIMER MILL product range and provide extra advantages that are suitable for universal applications," said a company spokesperson.

"For a long time, manufacturers, especially users in the areas of mechanical engineering, medical and contract machining, have been asking for a milling tool that they can use universally in steel and stainless steel, and also in cast iron, copper and even hardened steel for various operations," continued the spokesperson. "The HAIMER MILL tools-which are available as end mills according to DIN 6527 with sharp edge, corner radius or chamfer-showed substantial results in most of the cases." The same cutting edge geometries are available as modular tools for the HAIMER interchangeable head system, Duo-Lock.

Characteristics of the HAIMER MILL end mills are the unequal cutting edge, the center cutting design and a neck for higher cutting depth. The end mills are supplied with an h6 shank tolerance and fine-balanced. The run-out accuracy is <10 µm.

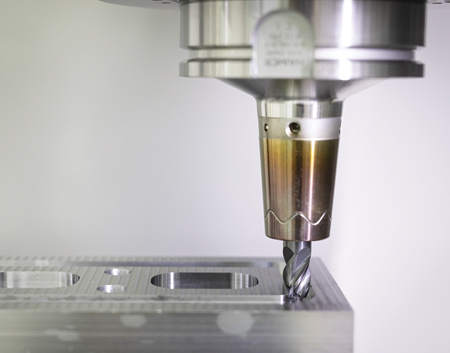

To offer users greater benefits, the HAIMER MILL range has been further extended. A short version with a cutting edge length of 1.25 x D is suitable for all applications that require less cutting depths. It uses the cutting edges at low ap values and offers high stability.

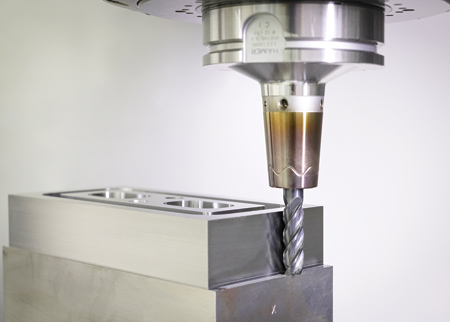

A long version is also now available for engineers who want to completely machine higher workpiece walls. With the new 3 x D HAIMER MILL, consistent surfaces of high quality can be achieved for such requirements. The tool is also suitable for dynamic milling operations. This modern milling strategy uses the entire cutting edge length and achieves a high metal removal rate.

The short version of the HAIMER MILL is available in stock from 2 mm to 6 mm (3/32" to 3/8") diameter in 1 mm (1/16") increments and from 8 mm to 20 mm (1/2" to 3/4") diameter in 2 mm (1/8") increments. The long version of the HAIMER MILL is available in stock from 6 mm to 20 mm diameter in 2 mm increments. For the inch offerings, the HAIMER MILL is available from 1/4" to 3/8" diameter in 1/16" increments and from 1/2" to 3/4" diameter in 1/8" increments. Both metric and inch are optionally available with the integrated HAIMER patented Safe-Lock pull-out protection.

For more information contact:

HAIMER USA

134 E. Hill Street

Villa Park, IL 60181

630-833-1500

haimer@haimer-usa.com

www.haimer-usa.com
